Giraffe bending to drink. In a giraffe with its head 2.0m above its heart, and its heart 2.0mabove its feet, the (hydrostatic) gauge pressure in the blood at its heart is250 torr. Assume that the giraffe stands upright and the blood density is 1.06×103kg/m3. (a) In torr (or role="math" localid="1657260976786" mmHg), find the (gauge) blood pressure at the brain (the pressure is enough to perfuse the brain with blood, to keep the giraffe from fainting). (b) torrIn (ormmHg), find the (gauge) blood pressure at the feet (the pressure must be countered by tight-fitting skin acting like a pressure stocking). (c) If the giraffe were to lower its head to drink from a pond without splaying its legs and moving slowly, what would be the increase in the blood pressure in the brain? (Such action would probably be lethal.)

Short Answer

Expert verified
  1. Gauge pressure at the brain of giraffe is94torr
  2. Gauge pressure at the feet of giraffe is 406torr
  3. Increment in pressure is 312torr

Step by step solution

01

The given data

  1. Density of blood,p=1.06×103kg/m3
  2. Heart pressure,p=250torr
02

Understanding the concept of gauge pressure

Use the formula for gauge pressure, which depends on density, height, and acceleration due to gravity. Gauge pressure is that, which is exerted by a fluid at any point of time at equilibrium due to the force applied by gravity.

Formula:

Pressure applied on a fluid surface,p=pgh

Net pressure applied on a body, ∆p=p2-p1

03

a) Calculation of pressure at brain

From equation (ii), the pressure at brain can be given as:

pbrain=pheart-pgh=250-1.06×103×9.8×2×1torr133.33Pa(∵1torr=133.33Pa)=94.2torr

The pressure at brain is 94.2 torr.

04

b) Calculation of pressure at feet

From equation (ii), the pressure at brain can be given as:

Pfeet=Pheart+pgh(∵herepressureistotalpressure)=250+1.06×103×9.8×2×1torr133.33Pa(∵1torr=133.33Pa)=405.8torr

The pressure at feet is 405.8 torr.

05

c) Calculation of increment in pressure

From equation (ii), the net pressure between brain and feet can be given as:

∆p=pbrain-pfeet=405.8-94.2=311.6torr

Hence, the increased value of pressure is 311.6 torr.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

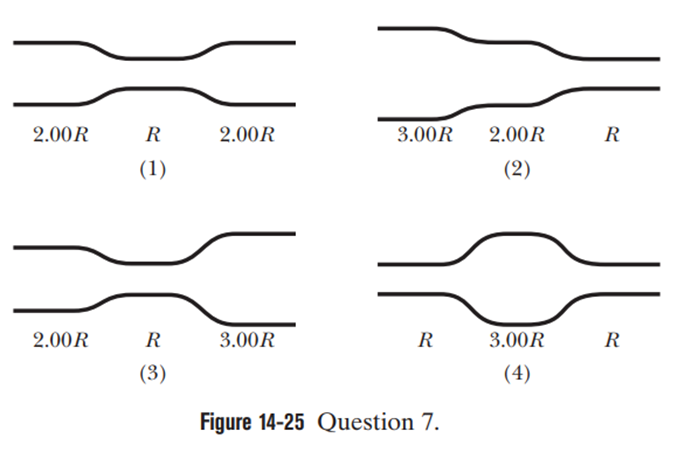

Figure 14-25 shows four arrangements of pipes through which water flows smoothly toward the right. The radii of the pipe sections are indicated. In which arrangements is the net work done on a unit volume of water moving from the leftmost section to the rightmost section (a) zero, (b) positive, and (c) negative?

The tension in a string holding a solid block below the surface of a liquid (of density greater than the block) is T0when the container (Fig. 14-57) is at rest. When the container is given an upward acceleration of 0.250g, what multiple of T0 gives the tension in the string?

At a depth of 10.9 km, the Challenger Deep in the Marianas Trench of the Pacific Ocean is the deepest site in any ocean. Yet, in 1960, Donald Walsh and Jacques Piccard reached the Challenger Deep in the bathyscaph Trieste. Assuming that seawater has a uniform density of1024kg/m3, approximate the hydrostatic pressure (in atmospheres) that the Trieste had to withstand. (Even a slight defect in the Trieste structure would have been disastrous.)

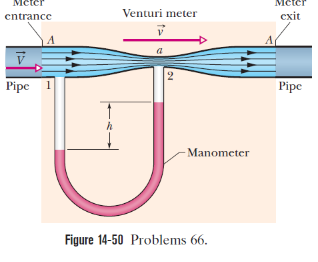

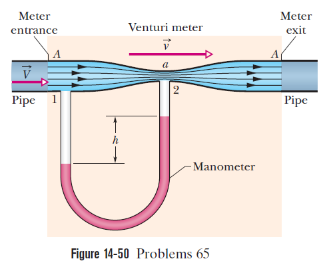

A venturi meter is used to measure the flow speed of a fluid in a pipe. The meter is connected between two sections of the pipe (Figure); the cross-sectional area Aof the entrance and exit of the meter matches the pipe's cross-sectional area. Between the entrance and exit, the fluid flows from the pipe with speed Vand then through a narrow "throat" of cross-sectional area a with speed v. A manometer connects the wider portion of the meter to the narrower portion. The change in the fluid's speed is accompanied by a change Δpin the fluid's pressure, which causes a height difference hof the liquid in the two arms of the manometer. (Here Δpmeans pressure in the throat minus pressure in the pipe.) (a) By applying Bernoulli's equation and the equation of continuity to points 1 and 2 in Figure, show that V=2a2∧pÒÏ(a2-A2), where ÒÏis the density of the fluid.

(b) Suppose that the fluid is fresh water, that the cross-sectional areas are 64cm2in the pipe and 32cm2in the throat, and that the pressure is 55kPain the pipe and 41kPain the throat. What is the rate of water flow in cubic meters per second?


You inflate the front tires on your car to28psi. Later, you measure your blood pressure, obtaining a reading of 120/80 , the readings being in mmHg. In metric countries (which is to say, most of the world), these pressures are customarily reported in kilopascals(kPa). In kilopascals, (a) what is your tire pressure? And (b) what is your blood pressure?
