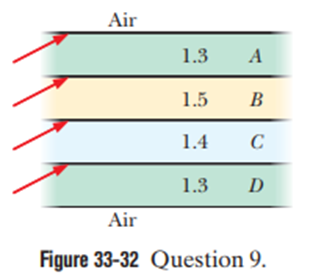

Figure 33-32 shows four long horizontal layers ´¡â€“D of different materials, with air above and below them. The index of refraction of each material is given. Rays of light are sent into the left end of each layer as shown. In which layer is there the possibility of totally trapping the light in that layer so that, after many reflections, all the light reaches the right end of the layer?

Short Answer

Expert verified

The layer in which there is possibility of totally trapping the light so that, after many reflections, all the light reaches the right end of the layer is layer B.

Step by step solution

01

Given data

Figure 33-32 showing four horizontal layers A-D of different materials with their refractive indexes, with air above and below them is given.

02

Understanding the concept of total internal reflection

Using total internal reflection, a light source can be trapped with a medium. For a total reflection case, the refractive index of the medium having the light source needs to be greater than the refractive index of the medium outside or at the layer of the medium.

03

Calculation of the layer that is possible case of trapping of the light

  • A wave encountering a boundary across which the index of refraction decreases will get rapped totally means undergo total internal reflection.
  • So, the adjacent layers should have less refractive index than the layer in which light is incident to get it trapped totally.
  • In this case, this condition is satisfied by only layer B as both the materials at the sides of material B have refractive index lower than refractive index of B.
  • Therefore, the layer in which there is possibility of totally trapping the light so that, after many reflections, all the light reaches the right end of the layer is layer B.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

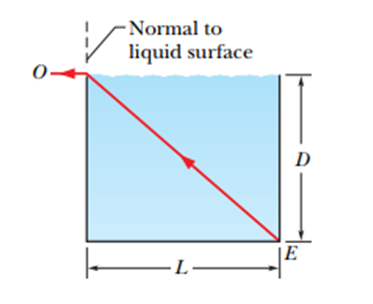

When the rectangular metal tank in the Figure is filled to the top with an unknown liquid, the observer O, with eyes level with the top of the tank, can just see the corner. A ray that refracts towardOthe top surface of the liquid is shown. IfD=85.0cmsoL=1.10m, what is the index of refraction of the liquid?

Figure:

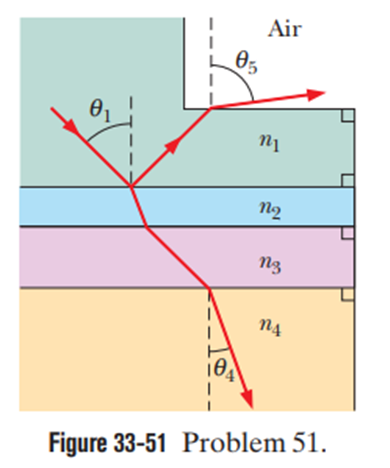

In Fig. 33-51, light is incident at angle θ1=40.1°on a boundary between two transparent materials. Some of the light travels down through the next three layers of transparent materials, while some of it reflects upward and then escapes into the air. Ifn1=1.30, n2=1.40, n3=1.32andn4=1.45, what is the value of

(a)θ5in the air and

(b) θ4in the bottom material?

A square, perfectly reflecting surface is oriented in space to be perpendicular to the light rays from the Sun. The surface has anedge lengthof l=2.0 mandislocatedr=3.0×1011″¾fromthe Sun’s center. What is the radiation force on the surface from the light rays?

In the arrangement of Fig. 33-15a, start with light that is initially polarized parallel to the x axis, and write the ratio of its final intensity I3to its initial intensity I0 asrole="math" localid="1662979786202" I3/I0=Acosnθ . What are A, n, and θif we rotate the polarizing direction of the first sheet (a)60° counterclockwise and (b)90° clockwise from what is shown?

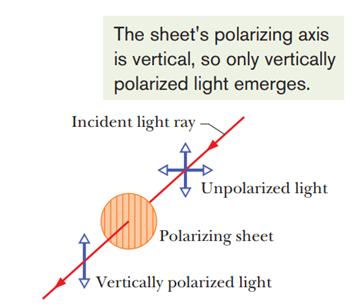

Unpolarized light of intensity 10″¾W/m2is sent into a polarizing sheet as in Fig.33-11. What are

(a) the amplitude of the electric field component of the transmitted light and

(b) the radiation pressure on the sheet due to its absorbing some of the light?
