Unpolarized light of intensity 10″¾°Â/³¾2is sent into a polarizing sheet as in Fig.33-11. What are

(a) the amplitude of the electric field component of the transmitted light and

(b) the radiation pressure on the sheet due to its absorbing some of the light?

Short Answer

Expert verified
  1. The amplitude of the electric field component of the transmitted light is Em=1.9 V/³¾.
  2. The radiation pressure on the sheet due to its absorbing some of the light isPr=1.7×10-11 P²¹ .

Step by step solution

01

Step 1: Given data

Unpolarized light intensity is,I0=10″¾°Â/³¾2.

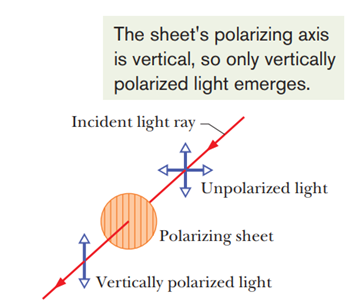

Figure 33-11 is the polarization of light.

02

Determining the concept

Use the concept of the intensity of light related to electric field amplitude. Using the equation of intensity, find the electric field amplitude. From radiation pressure related to intensity and speed of light, find the radiation pressure on the sheet.

Formulae are as follows:

Em=2cμ0IPr=Ic

Where,Pr is the radiation pressure,l is the intensity, and c is the speed of light.

03

(a) Determining theamplitude of the electric field component of the transmitted light.

The amplitude of the electric field component of the transmitted light:

In polarization of incident light, half intensity is absorbed, and half intensity is transmitted. Write the transmitted intensity as,

I=I02=10×10-3 W/³¾22=5×10-3 W/³¾2

Using the equation of amplitude of the electric field,

Em=2cμ0I

Plugging the values, and we get,

Em=2(3×108)(4π×10−7)(5.0×10−3)Em=1.9 V/³¾

Therefore, the amplitude of the electric field component of the transmitted light is Em=1.9 V/³¾.

04

 Step 4: (b) Determining theradiation pressure on the sheet due to its absorbing some of the light

The radiation pressure on the sheet due to its absorptionof some light:

Using the equation of radiation pressure,

Pr=Ic

Plugging the values, and we get,

Pr=5×10−33×108Pr=1.7×10−11 Pa

Therefore, the radiation pressure on the sheet due to its absorbing some of the light is .

Pr=1.7×10-11 P²¹

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Question: An electromagnetic wave with frequency 4.00×1014Hztravels through vacuum in the positive direction of an xaxis. The wave has its electric field oscillating parallel to the y axis, with an amplitude Em. At time t=0, the electric field at point Pon the xaxis has a value of +Em4and is decreasing with time. What is the distance along the xaxis from point Pto the first point withE=0if we search in (a) the negative direction and (b) the positive direction of the x axis?

An electromagnetic wave is traveling in the negative direction of ay-axis. At a particular position and time, the electric field is directed along the positive direction of thez-axis and has a magnitude of 100V/m. What are the (a) magnitude and (b) direction of the corresponding magnetic field?

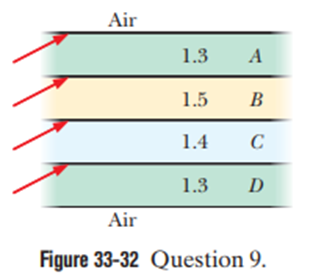

Figure 33-32 shows four long horizontal layers ´¡â€“D of different materials, with air above and below them. The index of refraction of each material is given. Rays of light are sent into the left end of each layer as shown. In which layer is there the possibility of totally trapping the light in that layer so that, after many reflections, all the light reaches the right end of the layer?

The magnetic component of a polarized wave of light is given by.Bx=(4μT)sin[ky+(2×1015s-1)t (a) In which direction does the wave travel, (b) parallel to which axis is it polarized, and (c) what is its intensity? (d) Write an expression for the electric field of the wave, including a value for the angular wave number. (e) What is the wavelength? (f) In which region of the electromagnetic spectrum is this electromagnetic wave?

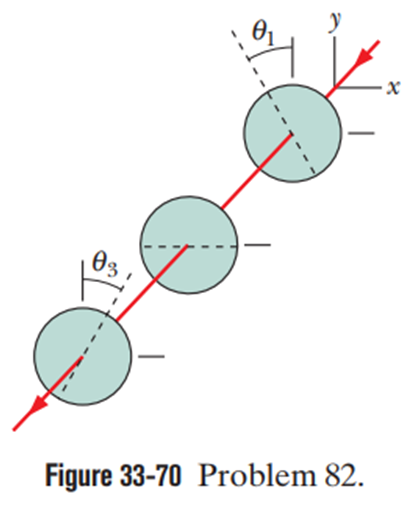

In Fig. 33-70, unpolarized light is sent into the system of three polarizing sheets, where the polarizing directions of the first and third sheets are at angles θ1=30°(counter-clockwise) andθ3=30°(clockwise). What fraction of the initial light intensity emerges from the system?
