An electromagnetic wave is traveling in the negative direction of ay-axis. At a particular position and time, the electric field is directed along the positive direction of thez-axis and has a magnitude of 100V/m. What are the (a) magnitude and (b) direction of the corresponding magnetic field?

Short Answer

Expert verified

a. The magnitude of the magnetic field is 3.3×10-7T.

b. The direction of the magnetic field is along the negative x-axis.

Step by step solution

01

Given Information

The direction of an electromagnetic wave is along the negative y-axis.

The direction of the electric field is along the positive z-axis.

The magnitude of the electric field is, E→=100V/m.

02

Understanding the concept of wave propagation

Here, we need to use the equation for the magnetic field associated with an electromagnetic wave to find the magnitude of the magnetic field. The direction of the magnetic field can be calculated using the vector identity of the cross product that the propagating wave is perpendicular to both the electric and magnetic field directions.

Formulae:

The magnitude of the magnetic field of a light wave,

B=Ec...........................(1)

The vector identity of three directional vectors, ∆k×∆i=∆j.............................(2)

03

a) Calculation of the magnitude of the magnetic field

Using the given data in equation (1), we can get the magnitude of the magnetic field as follows:

B=100V/m3×108m/s=3.3×10-7T

Hence, the value of the magnetic field is 3.3×10-7T.

04

b) Calculation of the direction of the magnetic field

As the electromagnetic wave is along the negative y-axis -j^, the direction of the magnetic field also must be along the negative axis, that is,-i^ according to equation (2), as the direction of the electric field is along the positive+k axis.

Hence, the direction of the magnetic field is along the negative x-axis.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

In Fig. 33-42, unpolarized light is sent into a system of three polarizing sheets, which transmitsthe initial light intensity. The polarizing directions of the first and third sheets are at anglesθ1=0°andθ3=90°.What are the

(a) smaller and

(b) larger possible values of angleθ2(<90°)for the polarizing direction of sheet 2?

Light in a vacuum is incident on the surface of a glass slab. In the vacuum, the beam makes an angle of32.0°with the normal to the surface, while in the glass it makes an angle of21.0°with the normal. What is the index of refraction of the glass?

Question: An electromagnetic wave with frequency 4.00×1014Hztravels through vacuum in the positive direction of an xaxis. The wave has its electric field oscillating parallel to the y axis, with an amplitude Em. At time t=0, the electric field at point Pon the xaxis has a value of +Em4and is decreasing with time. What is the distance along the xaxis from point Pto the first point withE=0if we search in (a) the negative direction and (b) the positive direction of the x axis?

Sunlight just outside Earth’s atmosphere has an intensity of1.40kW/m2. CalculateEm (a) and (b)Bmfor sunlight there, assuming it to be a plane wave.

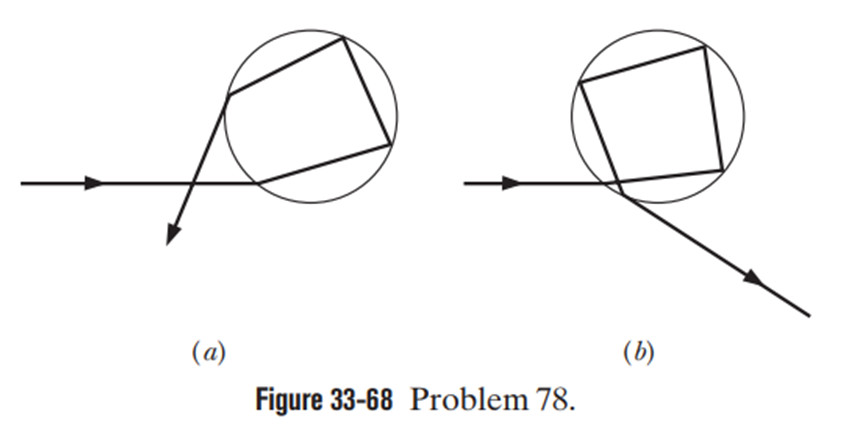

The primary rainbow described in Problem 77 is the type commonly seen in regions where rainbows appear. It is produced by light reflecting once inside the drops. Rarer is the secondary rainbow described in Module 33-5, produced by light reflecting twice inside the drops (Fig. 33-68a). (a) Show that the angular deviation of light entering and then leaving a spherical water drop isθdev=(180°)k+2θi-2(k+1)θr

where, k is the number of internal reflections. Using the procedure of Problem 77, find the angle of minimum deviation for (b) red light and (c) blue light in a secondary rainbow. (d) What is the angular width of that rainbow (Fig. 33-21d)?

The tertiary rainbow depends on three internal reflections (Fig. 33-68b). It probably occurs but, as noted in Module 33-5, cannot be seen with the eye because it is very faint and lies in the bright sky surrounding the Sun. What is the angle of minimum deviation for (e) the red light and (f) the blue light in this rainbow? (g) What is the rainbow’s angular width?
