Sunlight just outside Earth’s atmosphere has an intensity of1.40kW/m2. CalculateEm (a) and (b)Bmfor sunlight there, assuming it to be a plane wave.

Short Answer

Expert verified
  1. The amplitude of the electric field component is 1.03×103Vm.
  2. The amplitude of the magnetic field component is 3.43×10-6T.

Step by step solution

01

Listing the given quantities

The intensity of sunlight I=1.40kW/m2=1.40×103W/m2.

02

Understanding the concepts of amplitude

We use the intensity relation of the wave, square both sides, and solve for the electric field component. Finally, by substitutingtheelectric field component value inthemagnetic field component relation, we can find its amplitude.

03

(a) Calculations of the maximum value of the electric field component

The time-averaged rate per unit area at which energy is transported Savg, is called the intensityI of the wave.

The maximum value of the electric component can be written as,

Em=2μ0Ic

Here μ0 is the permeability of the free space, and c is the speed of the light.

Substitute the values in the above expression, and we get,

Em=24π×10-7T·mA1.40×103Wm23×108ms=24π×10-71.40×1033×1081T·mA×1Wm2×1ms×1V·A1W×1V·s/m21T=1.03×103V/m

The amplitude of the electric field component is 1.03×103Vm.

04

(b) Calculations of the amplitude of the magnetic field component Bm

The amplitude of the magnetic field component in the wave is given by,

Bm=Emc

Substitute the values in the above expression, and we get,

Bm=1.03×103Vm3×108ms=3.43×10-6T

The amplitude of the magnetic field component Bmis 3.43×10-6T.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

In Fig. 33-73, a long, straight copper wire (diameter2.50″¾³¾ and resistance1.00‰өp±ð°ù300″¾ ) carries a uniform current of 25‼îin the positive x direction. For point P on the wire’s surface, calculate the magnitudes of (a) the electricfield,E→(b) the magnetic field , B→and (c) the Poynting vector S→, and (d) determine the direction of S→.

A beam of intensity Ireflects from a long, totally reflecting cylinder of radius R; the beam is perpendicular to the central axis of the cylinder and has a diameter largerthan2R. What is the beam’s force per unit length on the cylinder?

Question: A catfish is2.00m below the surface of a smooth lake. (a) What is the diameter of the circle on the surface through which the fish can see the world outside the water? (b) If the fish descends, does the diameter of the circle increase, decrease, or remain the same?

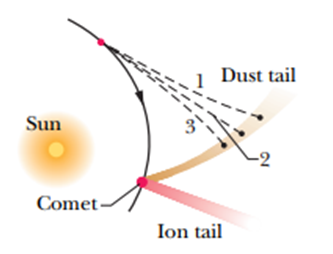

As a comet swings around the Sun, ice on the comet’s surface vaporizes, releasing trapped dust particles and ions. The ions, because they are electrically charged, are forced by the electrically charged solar wind into a straight ion tail that points radially away from the Sun (Fig. 33-39). The (electrically neutral) dust particles are pushed radially outward from the Sun by the radiation force on them from sunlight. Assume that the dust particles are spherical, have density3.5×103 k²µ/³¾3 , and are totally absorbing

.(a) What radius must a particle have in order to follow a straight path, like path 2 in the figure?

(b) If its radius is larger, does its path curve away from the Sun (like path 1) or toward the Sun (like path 3)?

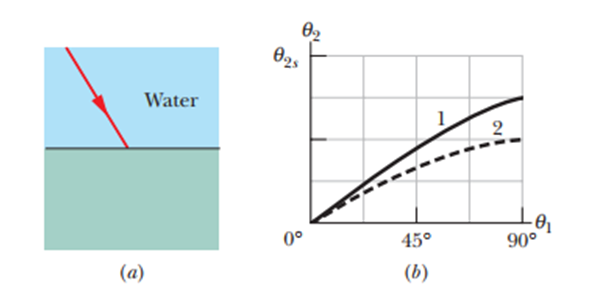

In Fig. 33-48a, a light ray in water is incident at an angleθ1on a boundary with an underlying material, into which some of the light refracts. There are two choices of the underlying material. For each, the angle of refractionθ2versus the incident angleis given in Fig. 33-48b. The vertical axis scale is set byθ2s=90°. Without calculation, determine whether the index of refraction of
