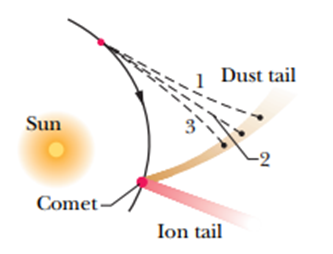

As a comet swings around the Sun, ice on the comet’s surface vaporizes, releasing trapped dust particles and ions. The ions, because they are electrically charged, are forced by the electrically charged solar wind into a straight ion tail that points radially away from the Sun (Fig. 33-39). The (electrically neutral) dust particles are pushed radially outward from the Sun by the radiation force on them from sunlight. Assume that the dust particles are spherical, have density3.5×103 k²µ/³¾3 , and are totally absorbing

.(a) What radius must a particle have in order to follow a straight path, like path 2 in the figure?

(b) If its radius is larger, does its path curve away from the Sun (like path 1) or toward the Sun (like path 3)?

Short Answer

Expert verified

a .R=1.7×10−7″¾

b. The path will be curved, and the direction of the path will be towards the Sun.

Step by step solution

01

Step 1: Given data

Density is, .ÒÏ=3500 k²µ/³¾3

02

Determining the concept

Newton's law of universal gravitation states that a particle attracts every other particle in the universe with a force, which is directly proportional to the product of their masses and inversely proportional to the square of the distance between their centers. And radiation pressure depends on the intensity and speed of light.

Formulae are as follows:

Radiation force (Fr)is given by,

Fr=IAc

Gravitation force (Fg) is given by,

Fg=GMsmr2

Where, is the radiation force, Fgis the gravitation force, l is the intensity, A is the area,C is the speed of light, Msis the mass of the Sun, m is the mass of the dust particles, and G is the gravitational constant.

03

(a) Determining the radius a particle has in order to follow a straight path, like the path  2 in the figure

Here, radiation force and gravitation force balance each other.

Fr=Fg

Let's find these two forces first.

Radiation force (Fr)is given by,

Fr=IAc

Substitute the values in the above expression, and we get,

Fr=Ps4πr2×πR2cFr=PsR24r2c (2)

Here, R is the radius of the particle.Psis the pressure of the sun.

Gravitation force(Fg):

Fg=GMsmr2

We know that m=4Ï€R3ÒÏ3.

Substitute the values in the above expression, and we get,

Fg=GMs4Ï€R3ÒÏ3r2 (2)

Now equating equations 1 and 2 as;

PsR24r2c=GMs4Ï€R3ÒÏ3r2

Rearrangingtheabove equation for R :

R=3Ps16Ï€cÒÏGMs

Substitute the values in the above expression, and we get,

R=3(3.9×1026)16Ï€(3×108)×(3.5×103)×(6.67×10−11)×(1.99×1030)R=1.7×10−7″¾

Hence, the radius is R=1.7×10−7″¾

04

 Step 4: (b) Determining the path curve away from the Sun (like path 1) or toward the Sun (like path 3, does it) if its radius is larger.

FgVaries withR3,andFrvaries withR2.

Therefore, the magnitude of gravitational force is greater than the radiation force.

Hence, the path will be curved, and the direction of the path will be towards the Sun.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

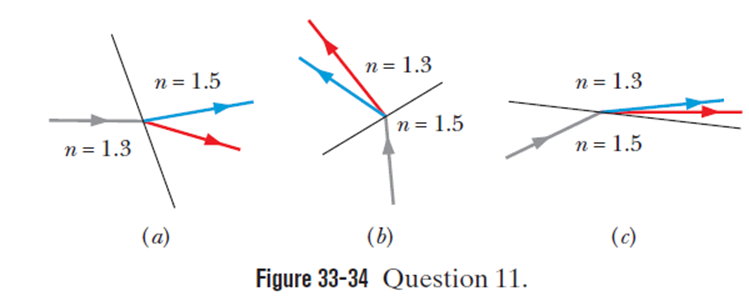

Each part of Fig. 33-34 shows light that refracts through an interface between two materials. The incident ray (shown gray in the figure) consists of red and blue light. The approximate index of refraction for visible light is indicated for each material. Which of the three parts show physically possible refraction? (Hint: First consider the refraction in general, regardless of the color, and then consider how red and blue light refract differently?

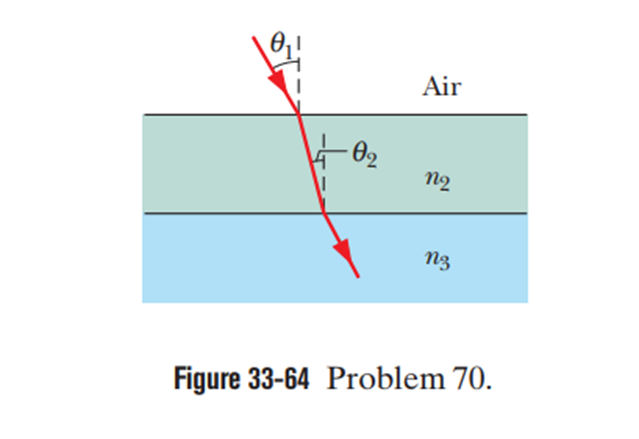

Question: In Fig. 33-64, a light ray in air is incident on a flat layer of material 2 that has an index of refraction n2=1.5 . Beneath material 2is material 3 with an index of refraction n3.The ray is incident on the air–material 2 interface at the Brewster angle for that interface. The ray of light refracted into material 3happens to be incident on the material 2-material 3 interface at the Brewster angle for that interface. What is the value of n3 ?

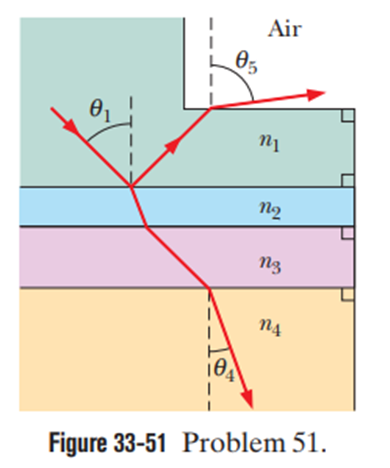

In Fig. 33-51, light is incident at angle θ1=40.1°on a boundary between two transparent materials. Some of the light travels down through the next three layers of transparent materials, while some of it reflects upward and then escapes into the air. Ifn1=1.30, n2=1.40, n3=1.32andn4=1.45, what is the value of

(a)θ5in the air and

(b) θ4in the bottom material?

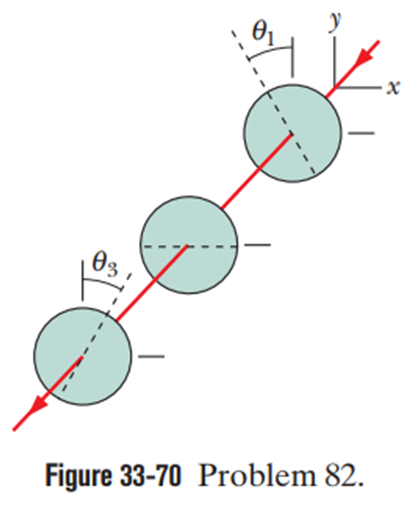

In Fig. 33-70, unpolarized light is sent into the system of three polarizing sheets, where the polarizing directions of the first and third sheets are at angles θ1=30°(counter-clockwise) andθ3=30°(clockwise). What fraction of the initial light intensity emerges from the system?

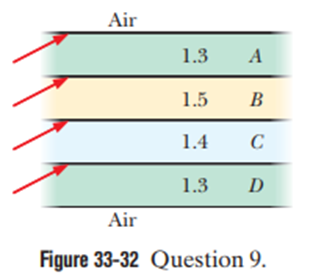

Figure 33-32 shows four long horizontal layers ´¡â€“D of different materials, with air above and below them. The index of refraction of each material is given. Rays of light are sent into the left end of each layer as shown. In which layer is there the possibility of totally trapping the light in that layer so that, after many reflections, all the light reaches the right end of the layer?
