What is the intensity of a traveling plane electromagnetic wave if Bmis1.0×10-4T?

Short Answer

Expert verified

The intensity of a traveling plane electromagnetic wave is 1.2×106W/m2.

Step by step solution

01

Listing the given quantities

The magnetic field in the wave, Bm=1.0×10-4T .

Permeability constant,μ0=1.26×10-6H/m2.

The velocity of light, c=3×108m/s.

02

Understanding the concepts of intensity

The rate of energy transport per unit area in such a wave is described by a vector S→ called the Poynting vector. The average energy transported over time S, i.e., Saverageis called the intensityI of the wave. The mathematical expression for intensity is I=Savg=cB2m/2μ0,, where c is the velocity of light and Bm is the magnetic field in the wave.

03

Calculations of the intensity of the traveling plane

The intensity of the plane can be calculated as,

I=cBm22μ0

Substitute the values in the above expression, and we get,

I=3×108m/s1.0×10-4T221.26×10-6H/m2=1.2×106·1m/s1H/m2×1T2×1W/m21T×1H/m21m/s×11T=1.2×106W/m2

Thus, the intensity of a traveling plane electromagnetic wave is 1.2×106W/m2.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Someone plans to float a small, totally absorbing sphere 0.500m above an isotropic point source of light so that the upward radiation force from the light matches the downward gravitational force on the sphere. The sphere’s density is 19.0 g/cm3, and its radius is 2.00mm. (a) What power would be required of the light source? (b) Even if such a source were made, why would the support of the sphere be unstable?

An isotropic point source emits light at wavelength500nm, at the rate of200W. A light detector is positioned400mfrom the source. What is the maximum rate∂B/∂t at which the magnetic component of the light changes with time at the detector’s location?

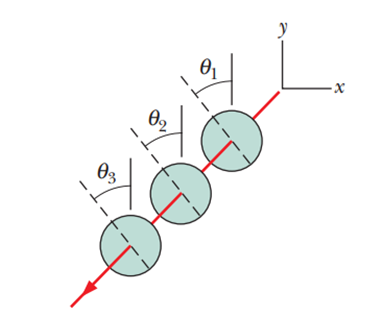

In Fig. 33-42, unpolarized light is sent into a system of three polarizing sheets, which transmitsthe initial light intensity. The polarizing directions of the first and third sheets are at anglesθ1=0°andθ3=90°.What are the

(a) smaller and

(b) larger possible values of angleθ2(<90°)for the polarizing direction of sheet 2?

Dispersion in a window pane. In the Figure (a), a beam of white light is incident at angleθ=50°on a common windowpane (shown in cross section). For the pane’s type of glass, the index of refraction for visible light ranges from1.524at the blue end of the spectrum to 1.509at the red end. The two sides of the pane are parallel. (a) What is the angular spread of the colors in the beam when the light enters the pane and(b) What is the angular spread of the colors in the beam when it emerges from the opposite side? (Hint: When you look at an object through a window pane, are the colors in the light from the object dispersed as shown in Figure (b)?)

a.

b.

Question: The average intensity of the solar radiation that strikes normally on a surface just outside Earth’s atmosphere is 1.4kw/m2.(a) What radiation pressure Pr is exerted on this surface, assuming complete absorption?(b) For comparison, find the ratio of Pr to Earth’s sea-level atmospheric pressure, which is1.0×105 P²¹
