Someone plans to float a small, totally absorbing sphere 0.500m above an isotropic point source of light so that the upward radiation force from the light matches the downward gravitational force on the sphere. The sphere’s density is 19.0 g/cm3, and its radius is 2.00mm. (a) What power would be required of the light source? (b) Even if such a source were made, why would the support of the sphere be unstable?

Short Answer

Expert verified
  1. The power of the light source is 4.68x1011 w.
  2. The support of the sphere is unstable because any small amount of force on the sphere in any direction will unbalance the upward radiation force and downward gravitational force from equilibrium.

Step by step solution

01

Step 1: Given

Sphere density, ÒÏ=19gm/cm3

The radius of the sphere, r=2mm

Distance, d=0.500m

02

Determining the concept

The radiation pressure formula and radiation force formula used to calculate the power of the light source.The radiation pressure formula is of total absorption of radiation. First, find the force on the surface due to radiation, and substituting this value and area of the surface, calculate the radiation pressure of the light bulb.When electromagnetic radiation of an intensityIis incident on a perfectly reflective surface, the radiation pressure P exerted on the surface is given by, P=2Ic, where c is the speed of light.

Formulae are as follows:

F =IAc

pr=Ic

I =PA

Here, F is the force, I is the intensity, A is the area, Pr is the radiation pressure, and P is the pressure.

03

(a) Determine the power of the light source.

The power of light source:

Upward radiation force from the light matches the downward gravitational force on the sphere.

Mg=Fr

The radiation pressure Prfor the totally absorbing surface is as follows:

pr=IC

I =PAr

pr=PcAr …… (1)

Ar=Area of the radiation by the source,

Ar=4Ï€»å2 ,

d-Distance from the source to the sphere.

Radiation pressure on the sphere is,

pr=FrAs

Fr=prAs

Substituting from 1),

Fr=PAscAr

Here, As is the area of the sphere.

The only projected area of the sphere is the circle to the radiation. Hence, the area of the circle is,

As=Ï€°ù2

mg =Fr

mg =PAscAr

P =mgArcAs

Resolve further as:

ÒÏ=mVs

Substitute the values and solve as:

role="math" localid="1663046688980" m=ÒÏ43Ï€°ù3P=ÒÏ43Ï€°ù3g4Ï€»å2cÏ€°ù2=19×103kg/m343Ï€2×10-339.8m/s24Ï€0.5m23×108m/sÏ€2×10-32=4.68×1011w

Therefore, the power of the light source is 4.68x1011 w.

04

(b) Determining why is the support of the sphere unstable

The movement of the sphere is unstable because any amount of minimum force in any direction will unbalance the radiation pressure upward and gravitational force downward.

Therefore, the support of the sphere is unstable because any small amount of force on the sphere in any direction will unbalance the upward radiation force and downward gravitational force from equilibrium.

Use the radiation pressure formula and radiation force formula to calculate the power of the light source.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Question: (a) How long does it take a radio signal to travel 150kmfrom a transmitter to a receiving antenna? (b) We see a full Moon by reflected sunlight. How much earlier did the light that enters our eye leave the Sun? The Earth–Moon and Earth–Sun distances are 3.8x105km and , respectively. (c) What is the round-trip travel time for light between Earth and a spaceship orbiting Saturn, 1.3x109km distant? (d) The Crab nebula, which is about 6500light years (ly) distant, is thought to be the result of a supernova explosion recorded by Chinese astronomers in A.D. 1054. In approximately what year did the explosion actually occur? (When we look into the night sky, we are effectively looking back in time.)

An airplane flying at a distance of10kmfrom a radio transmitter receives a signal of intensity10mW/m2.(a) What is the amplitude of the electric component of the signal at the airplane and (b) What is the amplitude of the magnetic component of the signal at the airplane? (c) If the transmitter radiates uniformly over a hemisphere, what is the transmission power?

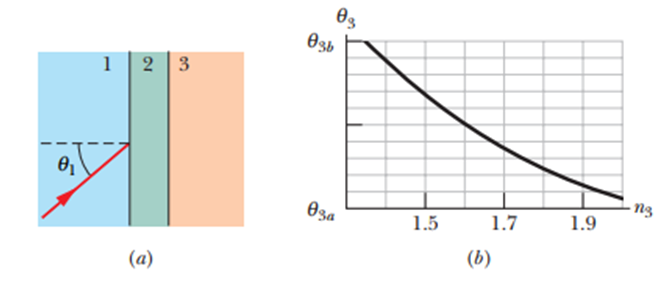

In Figure

(a), a beam of light in a material1is incident on a boundary at an angle θ1=40°. Some of the light travels through the material 2, and then some of it emerges into the material 3. The two boundaries between the three materials are parallel. The final direction of the beam depends, in part, on the index of refraction n3of the third material. Figure (b) gives the angle of refraction θ3in that material versus n3a range of possiblen3values. The vertical axis scale is set byθ3a=30.0° and θ3b=50.0°.(a) What is the indexof refraction of material , or is the index impossible to calculate without more information?

(b) What is the index of refraction of material 2, or is the index impossible to calculate without more information?

(c) It θ1is changed to 70°and the index of refraction of a material 3 is2.4 , what is θ3?

Figure:

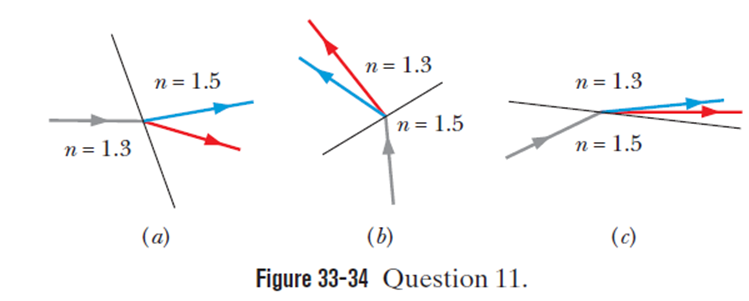

Each part of Fig. 33-34 shows light that refracts through an interface between two materials. The incident ray (shown gray in the figure) consists of red and blue light. The approximate index of refraction for visible light is indicated for each material. Which of the three parts show physically possible refraction? (Hint: First consider the refraction in general, regardless of the color, and then consider how red and blue light refract differently?
