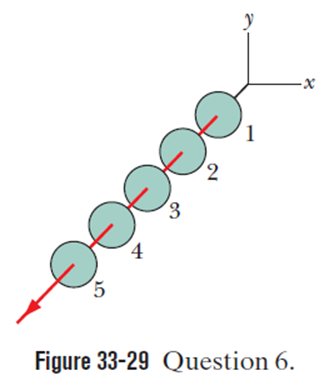

Polarizing angles of five sheets are given:

Sheet 1-$35掳$

Sheet 2-$0掳$

Sheet 3-$0掳$

Sheet 4-$45掳$

Sheet 5-$180掳$

The polarizing angle is the angle at which the unpolarized light or other electromagnetic radiation must be incident upon a nonmetallic surface for the reflected radiation to acquire maximum plane polarization. Here, we need to use the concept of polarization of light using polarizing sheets. The transmission of light can be eliminated only if the polarizing directions of immediate sheets become perpendicular to each other. So, when rotating polarizing sheet 3, we need to check at which angle the polarization direction of sheet 3 will get crossed with sheet 2 or sheet 4.

We have the polarization direction of sheet 4 at $110掳$counterclockwise from the y-axis. So, when we rotate the polarizing direction of sheet 3 counterclockwise from the y-axis, it becomes perpendicular to the polarizing direction of sheet 4.

Thus, at $20掳,$the transmission of light through the system is eliminated.

When we further rotate sheet 3 and come at an angle $90掳,$ the polarization direction of sheet 3 becomes perpendicular to sheet 2 because we know that the polarization direction of sheet 2 is along the y-axis $\left(0掳\right)$.

From $90掳\text{to}180掳$, there is no possibility of polarization direction getting crossed with each other.

Hence, we can conclude that during rotation at angles $20掳\text{and}90掳$the transmission of light through the system gets eliminated.
