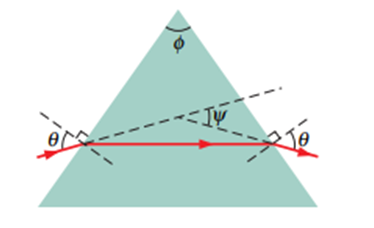

The figure is given in which a ray is incident on one face of a triangular glass prism in the air.

Write for the angle of refraction in terms of thevertex angle from the geometry of the prism and the ray diagram. Thenusing the formula for theexterior angle of triangle,solve for the angle of incidence in terms of thevertex angle. Then, using Snell’s law of refraction, show that the index of refraction of the glass prism in given by $\mathit{n}\mathbf{=}\frac{\mathbf{s}\mathbf{i}\mathbf{n}\frac{\mathbf{1}}{\mathbf{2}}\mathbf{(}\mathbf{ψ}\mathbf{+}\mathbf{f}\mathbf{)}}{\mathbf{s}\mathbf{i}\mathbf{n}\frac{\mathbf{1}}{\mathbf{2}}\mathbf{f}}$.

Formula:

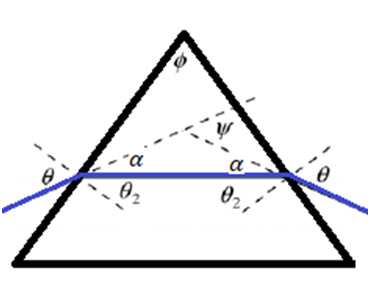

Consider the diagram for the condition as:

Let${\mathrm{θ}}_2$be the angle of refraction.

From the figure, we can write

$\begin{array}{l}{\mathrm{θ}}_2+\mathrm{Î\pm }={90}^0\\ {\mathrm{θ}}_2={90}^0−\mathrm{Î\pm }\end{array}$

Consider the equation for the angle as:

$\mathrm{Ï•}+2\mathrm{Î\pm }={180}^0$

Hence,

$\mathrm{Î\pm }=\frac{({180}^0−\mathrm{Ï•})}{2}$

Solve for the second angle as:

$\begin{array}{l}{\mathrm{θ}}_2=90°−\frac{(180°−\mathrm{ϕ})}{2}\\ {\mathrm{θ}}_2=\frac{(180°−180°+\mathrm{ϕ})}{2}\end{array}$

${\mathrm{θ}}_2=\frac{\mathrm{ϕ}}{2}$

Using the formula for the exterior angle of triangle and solve as:

$\begin{array}{c}\mathrm{ψ}=2(\mathrm{θ}−{\mathrm{θ}}_2)\\ \mathrm{ψ}=2(\mathrm{θ}−\frac{\mathrm{ϕ}}{2})\\ 2\mathrm{θ}=\mathrm{ψ}+\mathrm{ϕ}\\ \mathrm{θ}=\frac{1}{2}(\mathrm{ϕ}+\mathrm{ψ})\end{array}$

Snell’s law given as:

$n_1\sin {\mathrm{θ}}_1=n_2\sin {\mathrm{θ}}_2$

Here, $n_1=1,{\mathrm{θ}}_1=\mathrm{θ},n_2=n,{\mathrm{θ}}_2={\mathrm{θ}}_2$. Therefore,

$\begin{array}{l}\sin \mathrm{θ}=n\sin {\mathrm{θ}}_2\\ n=\frac{\sin \mathrm{θ}}{\sin {\mathrm{θ}}_2}\\ n=\frac{\sin \frac{1}{2}(\mathrm{ϕ}+\mathrm{ψ})}{\sin \frac{\mathrm{ϕ}}{2}}\end{array}$
