Project Seafarer was an ambitious program to construct an enormous antenna, buried underground on a site about 10000km2in area. Its purpose was to transmit signals to submarines while they were deeply submerged. If the effective wavelength were1.0×104Earth radii, what would be the (a) frequency and(b) period of the radiations emitted? Ordinarily, electromagnetic radiations do not penetrate very far into conductors such as seawater, and so normal signals cannot reach the submarines.

Short Answer

Expert verified

a) Frequency of the emitted radiations is 4.7×10-3Hz.

b) Period of the emitted radiations is 212seconds.

Step by step solution

01

Listing the given quantities

Area, A=10000km2.

The wavelength,λ=1.0×104 earth radii.

Earth radii is,6.37×106m .

Speed of light,c=3×108m/s .

02

Understanding the concepts of frequency, period, and wavelength

The transmission signals from a submarine deeply submerged underground have wavelength 1.0×104earth radii. Their frequency and time period can be calculated using the general formula for frequency. Earth radii can be considered as the average distance from the physical center to the surface, having value 6.37×106m. Also, the time period of the radiation is the inverse of the frequency.

Formula:

Frequency is,f=cλ .

The time period is, T=1f.

03

(a) Calculations of the frequency of the radiation

Frequency can be calculated as,

f=cλ

Substitute the values in the above expression, and we get,

f=3×1081.0×104×6.37×106=4.7×10-3Hz

Thus, the frequency of the emitted radiations is 4.7×10-3Hz

04

(b) Calculations of the time period

The time period can be calculated as,

T=1f

Substitute the values in the above expression, and we get,

T=14.7×10-3=212seconds

Thus, the period of the emitted radiations is 212seconds

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

In Fig. 33-77, an albatross glides at aconstant 15 m/shorizontallyabove level ground, moving in a vertical plane that contains the Sun. It glides toward a wallof heighth=2.0 m, which it will just barely clear. At that time of day, the angle of the Sun relative to the groundisθ=30°.At what speed does the shadow of the albatross move (a) across the level ground and then (b) up the wall? Suppose that later a hawk happens to glide along the same path, alsoat15 m/s.You see that when its shadow reaches the wall, the speed of the shadow noticeably increases. (c) Is the Sun now higher or lower in the sky than when the albatross flew by earlier? (d) If the speed of the hawk’s shadow on the wallis45 m/s,what is the angle u of the Sun just then?

In Fig. 33-35, light travels from material a, through three layers of other materials with surfaces parallel to one another, and then back into another layer of material a. The refractions (but not the associated reflections) at the surfaces are shown. Rank the materials according to index of refraction, greatest first. (Hint: The parallel arrangement of the surfaces allows comparison.

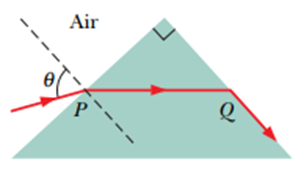

Question: In the Figure, light enters a 90∘triangular prism at point Pwith incident angle θ, and then some of it refracts at point Qwith an angle of refraction of 90∘.(a) What is the index of refraction of the prism in terms of θ?(b) What, numerically, is the maximum value that the index of refraction can have?(c) Does light emerge at Qif the incident angle at Pis increased slightly? and (d) Does light emerge at Qif the incident angle at Pis decreased slightly?
