A variable capacitor with a range from 10 to 365pF is used with a coil to form a variable-frequency LCcircuit to tune the input to a radio. (a) What is the ratio of maximum frequency to minimum frequency that can be obtained with such a capacitor? If this circuit is to obtain frequencies from 0.54 MHz to 1.6 0MHz, the ratio computed in (a) is too large. By adding a capacitor in parallel to the variable capacitor, this range can be adjusted. To obtain the desired frequency range,(b) What capacitance should be added ? (c) What inductance should the coil have?

Short Answer

Expert verified
  1. The ratio of maximum to minimum frequency range is 6.0.
  2. The capacitance to add is 36 pF.
  3. The inductance of the coil is2.2×10-4H.

Step by step solution

01

The given data

  1. The capacitance ranges from Cmin=10pFto Cmax=365pF.
  2. Maximum frequency, fmax=0.54MHz.
  3. Minimum frequency, fmin=1.60MHz.
02

Understanding the concept of frequency of LC circuit

We can use the concept of frequency of the oscillator, which is inversely proportional to the capacitance. So from the minimum value of the capacitor, we get the maximum frequency. Now, we can take the ratio of the maximum frequency to the minimum frequency. Adding the additional capacitor, which is parallel to the original capacitor, and by using the condition that the frequency range must be the same, we can first take the ratio of frequency and find the capacitance of the additional capacitor. Finally, we can find the inductance of the coil.

Formula:

The frequency of an LC circuit,f=12Ï€LC (i)

03

a) Calculation of maximum and minimum frequency

From equation (i), we conclude that the frequency is inversely proportional to thesquare root of the capacitor. So, the ratio of the maximum frequency to the minimum frequency range using equation (i) can be written as follows:

fmaxfmin=CminCmax=36510=6.0

Hence, the value of the ratio is 6.0.

04

b) Calculation of the capacitance to be added

An additional capacitor is added to the capacitor so that we taketheratio ofthefrequency as follows:

fmaxfmin=1.600.54=2.96

Now, by using equation (i) andthegiven condition, we can get the added capacitor as follows:

fmaxfmin=C+365C+10C+365C+10=2.96C+365C+10=8.76C+365=C+108.76365-87.6=8.76C-C7.76C=277.4C=35.74pF≈36pF

Hence, the value of the added capacitance is 36 pF.

05

c) Calculation of the inductance in the coil

Now we have to solve the frequency equation to find out the inductance. For the minimum frequency, the new capacitance can be given as:

C=365+36=401pF

And localid="1663085663189" f=0.54MHz

Now, using the given data in equation (i), we can get the inductance value as follows:

L=12π2f2C=12π20.54×1062×401×10-12=14π2×0.29×1012×401×10-12=2.2×10-4H

Hence, the value of the inductance is 2.2×10-4H.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

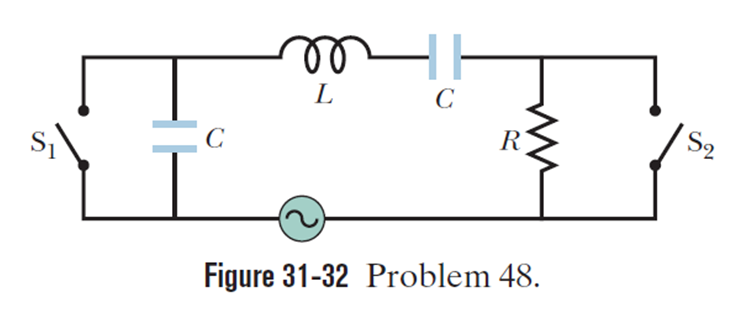

Figure 31-32 shows a driven RLC circuit that contains two identical capacitors and two switches. The emf amplitude is set at εm=12.0V, and the driving frequency is set at 60.0Hz. With both switches open, the current leads the emf by 30.9°. With switch S1closed and switch S2still open, the emf leads the current by 15.0°. With both switches closed, the current amplitude is 447mA. What are (a) R, (b) C , and (c) L?
