Chapter 36: Q98P (page 1115)
Suppose that two points are separated by 2.0 cm. If they are viewed by an eye with a pupil opening of 5.0 mm, what distance from the viewer puts them at the Rayleigh limit of resolution? Assume a light wavelength of 500 nm.
The required distance is 164 m.
Over 30 million students worldwide already upgrade their learning with 91影视!
All the tools & learning materials you need for study success - in one app.
Get started for free
Light is incident on a grating at an angle c as shown in Fig. 36-49.
Show that bright fringes occur at angles that satisfy the equation
m=0, 1, 2, 3(Compare this equation with Eq. 36-25.) Only the special casehas been treated in this chapter

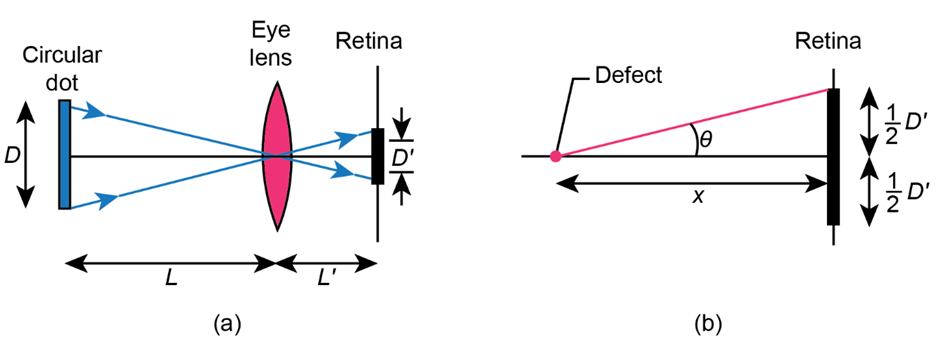

Floaters. The floaters you see when viewing a bright, featureless background are diffraction patterns of defects in the vitreous humor that fills most of your eye. Sighting through a pinhole sharpens the diffraction pattern. If you also view a small circular dot, you can approximate the defect鈥檚 size. Assume that the defect diffracts light as a circular aperture does. Adjust the dot鈥檚 distance L from your eye (or eye lens) until the dot and the circle of the first minimum in the diffraction pattern appear to have the same size in your view. That is, until they have the same diameter on the retina at distance from the front of the eye, as suggested in Fig. 36-42a, where the angles on the two sides of the eye lens are equal. Assume that the wavelength of visible light is . If the dot has diameter and is distance from the eye and the defect is in front of the retina (Fig. 36-42b), what is the diameter of the defect?
The pupil of a person鈥檚 eye has a diameter of 5.00 mm. According to Rayleigh鈥檚 criterion, what distance apart must two small objects be if their images are just barely resolved when they are 250 mm from the eye? Assume they are illuminated with light of wavelength 500 nm
In a certain two-slit interference pattern, 10 bright fringes lie within the second side peak of the diffraction envelope and diffraction minima coincide with two-slit interference maxima. What is the ratio of the slit separation to the slit width?
A source containing a mixture of hydrogen and deuterium atoms emits red light at two wavelengths whose mean is 656.3 nm and whose separation is 0.180 nm. Find the minimum number of lines needed in a diffraction grating that can resolve these lines in the first order.
