The headlights of a moving car require about 10 Afrom the 12 Valternator, which is driven by the engine. Assume the alternator isefficient (its output electrical power is 80%of its input mechanical power), and calculate the horsepower the engine must supply to run the lights.

Short Answer

Expert verified

The horsepower that the engine must supply to run the lights is 0.20hp .

Step by step solution

01

The given data

  1. Current required by the moving car鈥檚 headlights, i = 10A
  2. Voltage required by the headlights, V = 12 V
  3. The efficiency of the alternator,Pout=0.80Pin
02

Understanding the concept of the power

By using the relations between power, potential, and current, we calculate the power watts. Using the relationship between Watts and Horsepower, we can convert this into horsepower.

Formulae:

The power required to be generated by the engine, P = iV (i)

The value of one horsepower to watt, 1hp=746 W (ii)

03

Calculation of the horsepower to be supplied by the engine

From the initial condition from the problem, we have the value of the power as follows:

Pin=10.80Pout...................(a)

Now, using equation (i) and the given data, we can get the value of the output power as follows:

Pout=1012=120W

Now, the value of the horsepower required by the engine can be calculated by using the above value in equation (a) as follows:

Pin=10.80746120=0.20hp

Hence, the value of the power is 0.20hp .

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Copper and aluminum are being considered for a high-voltage transmission line that must carry a current of 60.0 A. The resistance per unit length is to be0.150/km. The densities of copper and aluminum are 8960and2600kg/m3, respectively. Compute (a) the magnitude Jof the current density and (b) the mass per unit lengthfor a copper cable and (c) Jfor an aluminum cable (d)for an aluminum cable.

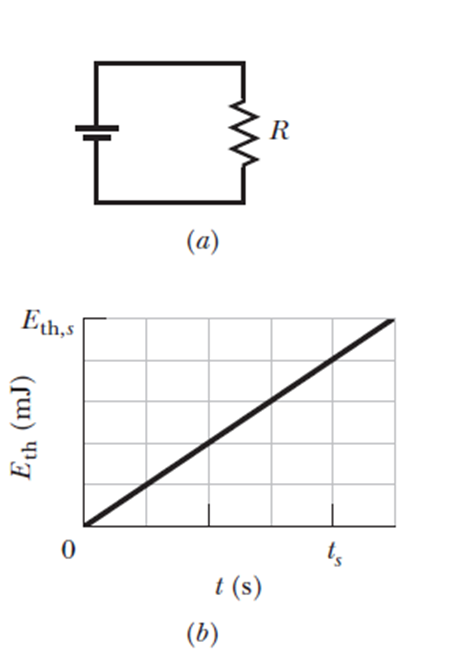

In Figure-a, a20resistor is connected to a battery. Figure-bshows the increase of thermal energyEth in the resistor as a function of time t. The vertical scale is set byEth,s=2.50mJ, and the horizontal scale is set byrole="math" localid="1661413706195" ts=4.0s. What is the electric potential across the battery?

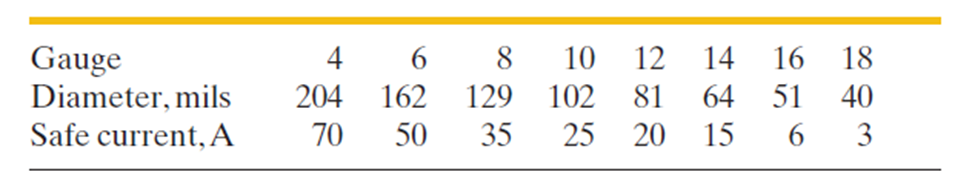

The (United States) National Electric Code, which sets maximum safe currents for insulated copper wires of various diameters, is given (in part) in the table. Plot the safe current density as a function of diameter. Which wire gauge has the maximum safe current density? (鈥淕auge鈥 is a way of identifying wire diameters, and1mil=10-3in.)

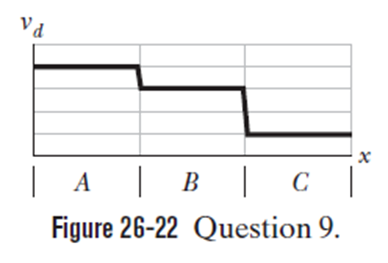

Figure 26-22 gives the drift speed vdof conduction electrons in a copper wire versus position xalong the wire. The wire consists of three sections that differ in radius. Rank the three sections according to the following quantities, greatest first: (a) radius, (b) number of conduction electrons per cubic meter, (c) magnitude of electric field, (d) conductivity

A 120 Vpotential difference is applied to a space heater whose resistance is 14when hot. (a) At what rate is electrical energy transferred to thermal energy? (b) What is the cost for 5.0h at US $0.05/kW.h?
