A 120 Vpotential difference is applied to a space heater whose resistance is 14Ωwhen hot. (a) At what rate is electrical energy transferred to thermal energy? (b) What is the cost for 5.0h at US $0.05/kW.h?

Short Answer

Expert verified
  1. The rate of transfer of the electrical energy to thermal energy is 1.0 kW.
  2. The cost of this energy transfer for 5h at US $0.05/kw.h is US $0.25.

Step by step solution

01

The given data

  1. Potential difference, V = 120 V
  2. Resistance of the heater,R=14Ω
  3. Time of transfer, t = 0.05h
  4. Cost per energy isUS $0.05/kw.h
02

Understanding the concept of rate of energy transfer

Using the concept of power, we can get the required rate of electrical energy transfer to thermal energy. Then, using this value, we can get the cost per transfer of the energy.

Formula:

The rate of energy transfer from one form to another, P=V2/R …(¾±)

03

(a) Calculation of the rate of the energy transfer

Using the given data in equation (i), we can get the rate of transferred electrical energy to thermal energy as follows:

P=120V214Ω=1.0×103W=1.0kW

Hence, the value of the rate of energy is 1.0kW.

04

(b) Calculation of the cost value

The cost of the energy transfer using the given data can be given as follows:

Cost=1kW5h0.05$/kW.h=US$0.25

Hence, the value of the required cost is US$0.25.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

During the 4.0 mina 5.0 Acurrent is set up in a wire, how many (a) coulombs pass through any cross section across the wire’s width? (b) electrons pass through any cross section across the wire’s width?

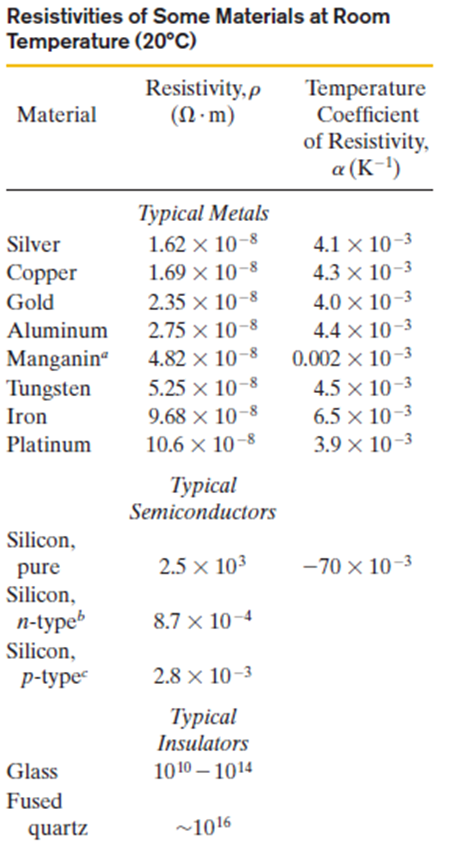

A coil is formed by winding 250turnsof insulated 16-gauge copper wire (diameter = 1.3 mm) in a single layer on a cylindrical form of radius 12cm. What is the resistance of the coil? Neglect the thickness of the insulation. (Use Table 26-1.)

Two conductors are made of the same material and have the same length. Conductor Ais a solid wire of diameter . Conductor Bis a hollow tube of outside diameter 1.0 mmand inside diameter 1.0mm. What is the resistance ratioRA/RB, measured between their ends?

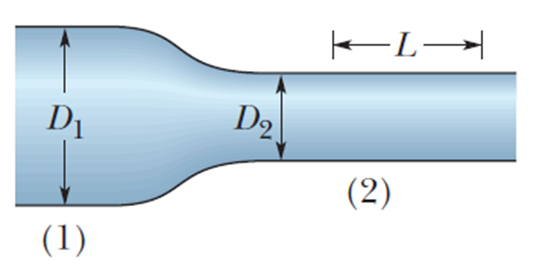

Figure shows wire section 1 of diameter D1=4.00Rand wire section 2 of diameter D2=2.00R, connected by a tapered section. The wire is copper and carries a current. Assume that the current is uniformly distributed across any cross-sectional area through the wire’s width. The electric potential change Valong the lengthL=2.00m shown in section 2 is10.0μV. The number of charge carriers per unit volume is8.49×1028m-3. What is the drift speed of the conduction electrons in section 1?

A steady beam of alpha particles (q2e) traveling with constant kinetic energy 20 MeV carries a current of0.25 A . (a) If the beam is directed perpendicular to a flat surface, how many alpha particles strike the surface in 3.0 s? (b) At any instant, how many alpha particles are there in a given 20 cmlength of the beam? (c) Through what potential difference is it necessary to accelerate each alpha particle from rest to bring it to energy of 20 MeV ?
