Chapter 9: Q12Q (page 246)

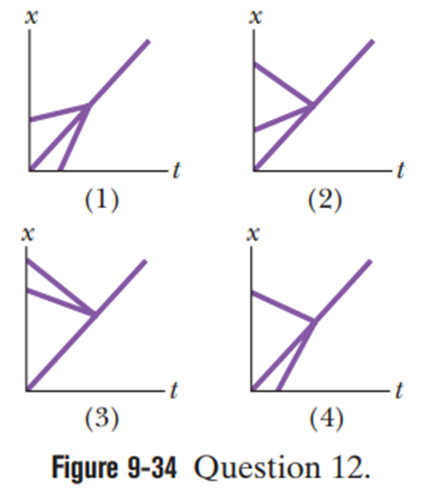

Figure 9-34 shows four graphs of position versus time for two bodies and their center of mass. The two bodies form a closed, isolated system and undergo a completely inelastic, one-dimensional collision on an x-axis. In graph 1, are (a) the two bodies and (b) the center of mass moving in the positive or negative direction of the x-axis? (c) Which of the graphs correspond to a physically impossible situation? Explain.

Short Answer

Expert verified
  1. Two bodies are moving in the positive direction of the x-axis.
  2. Center of mass of the bodies is moving in the positive direction of the x-axis.
  3. Graph 2 and 3 corresponds to a physically impossible situation.

Step by step solution

01

The given data

Four graphs of position versus time for two bodies and their center of mass.

02

Understanding the concept of the study of the graph

From the slopes of the lines in graph 1, we can conclude the direction of motion of the 2 bodies and their center of mass. From the characteristics of the center ofmass and the nature of the graph, we can find the graph which corresponds to a physically impossible situation.

03

a) Calculation of the direction of the motion of the two bodies

From graph 1, we can infer that the slopes of the lines are positive.

Therefore, two bodies are moving in the positive direction of the x-axis.

04

b) Calculation of the direction of the motion of the center of mass

From graph 1, we can infer that the slopes of the lines are positive.

Therefore, the center of mass of the bodies is moving in the positive direction of the x-axis.

05

c) Calculation of the physically impossible situations

For an isolated system, the center of mass of the given straight linegraph is betweenx and t. The center of the mass line should lie between the lines for two masses.

Therefore graph 2 and 3 corresponds to a physically impossible situation.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A uniform soda can of mass0.140kgis12.0cmtall and filled with0.354kgof soda (Figure 9-41). Then small holes are drilled in the top and bottom (with negligible loss of metal) to drain the soda. (a) What is the height hof the com of the can and contents initially and (b) After the can loses all the soda? (c) What happens to has the soda drains out? (d) If xis the height of the remaining soda at any given instant, find x when the com reaches its lowest point.

A big olive (m=0.50kg) lies at the origin of an XYcoordinates system, and a big Brazil nut ( M=1.5kg) lies at the point (1.0,2.0)m . At t=0 , a force F0=(2.0i^-3.0j)^ begins to act on the olive, and a force localid="1657267122657" Fn=(2.0i^-3.0j)^begins to act on the nut. In unit-vector notation, what is the displacement of the center of mass of the olive鈥搉ut system att=4.0s with respect to its position att=0?

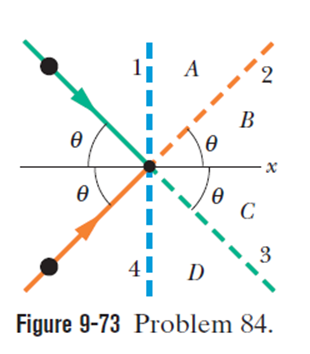

Figure 9-73 shows an overhead view of two particles sliding at constant velocity over a frictionless surface. The particles have the same mass and the same initial speed V = 4.00 m/s, and they collide where their paths intersect. An xaxis is arranged to bisect the angle between their incoming paths, such that胃=40.0掳. The region to the right of the collision is divided into four lettered sections by the xaxis and four numbered dashed lines. In what region or along what line do the particles travel if the collision is (a) completely inelastic, (b) elastic, and (c) inelastic? What are their final speeds if the collision is (d) completely inelastic and (e) elastic?
