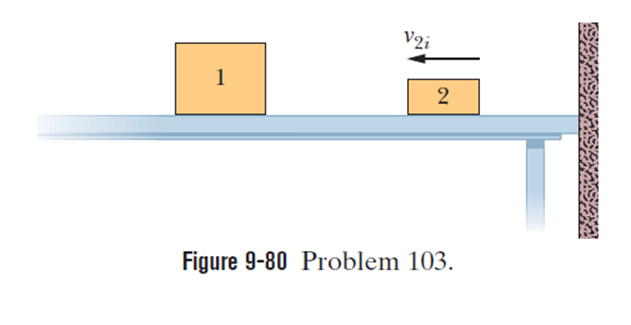

In Fig. 9-80, block 1 of massm1=6.6kgis at rest on a long frictionless table that is up against a wall. Block 2 of massm2is placed between block 1 and the wall and sent sliding to the left, toward block 1, with constant speed v2i . Find the value ofm2for which both blocks move with the same velocity after block 2 has collided once with block 1 and once with the wall. Assume all collisions are elastic (the collision with the wall does not change the speed of block 2).

Short Answer

Expert verified

The value of mass m2is 2.2 kg .

Step by step solution

01

Understanding the given information

i) Mass of block 1, m1is6.6kg.

ii) The speed of block 2 is v2i.

02

Concept and formula used in the given question

You use the concept of conservation of momentum to find the mass. You use the equations given in the book 9-75 and 9-76 and can solve for the mass of block 2.

V1f=2m2m1+m2v2iV2f=m2-m1m1+m2v2i

03

Calculation for the value of m2 for which both blocks move with the same velocity after block 2 has collided once with block 1 and once with the wall

We can use the below equations to find mass as,

V1f=2m2m1+m2v2iV2f=m2-m1m1+m2v2i

Here, v2iis the initial velocity of block -2.

The velocity of block 2, after bouncing off the wall, will be the same as before but with a negative sign; we can write it as,

V1f=-V2f

Substitute the values in the above expression, and we get,

2m2m1+m2v2i=m2-m1m1+m2v2i2m2=-m2-m13m2=m1m2=m13

Substitute the values in the above expression, and we get,

m2=6.63=2.2kg

Thus, the mass of block 2 is m2=2.2kg.
