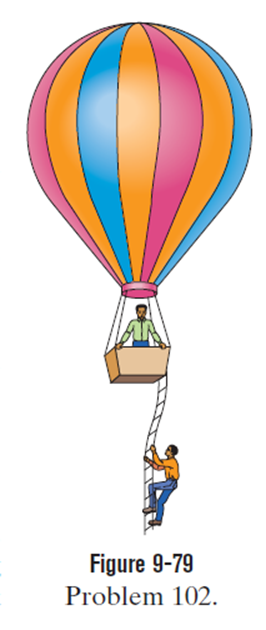

In Fig. 9-79, an 80 kgman is on a ladder hanging from a balloon that has a total mass of 320 kg(including the basket passenger). The balloon is initially stationary relative to the ground. If the man on the ladder begins to climb at 2.5m/srelative to the ladder, (a) in what direction and (b) at what speed does the balloon move? (c) If the man then stops climbing, what is the speed of the balloon?

Short Answer

Expert verified

a) The direction of the balloon is downward.

b) Speed of the balloon, vbis0.5m/s.

c) When a man stops climbing, the speed of the balloon is zero.

Step by step solution

01

Understanding the given information

i) Mass of man on the ladder, m is 80 kg .

ii) Mass of balloon with the person, M is 320 kg .

iii) Speed of man on ladder relative to the ground, vmis2.5m/s.

02

Concept and formula used in the given question

You use the concept of center of mass. When the man climbs on the ladder, the center of mass of man – the balloon system will not move. You can find the speed of the balloon by using the equation of center of mass of velocity. The formula required is given below.

Vcm=mvm-Mvbm+M

03

(a) Calculation for the direction

As the man on theladder is moving upward, the center of mass of the man-balloon system will not move.

Thus, the direction of motion of the balloon will be downward.

04

(b) Calculation for the speed at which the balloon moves

We can use the equation of center of mass for velocity,

Vcm=mvm-Mvbm+M

Where,vmis the speed of the man relative to the ground andvbis the speed of the balloon, and v is the speed of a man relative to the ladder.

vm=v-vb

Plugging the values, we get,

Vcm=mv-vb-Mvbm+Mmv-m+Mvbm+M=0vb=mvm+M

Substitute the values in the above expression, and we get,

vb=80×2.580+320vb=200400=0.5m/s

Thus, the speed of the balloon, vbis0.5m/s.

05

(c) Calculation for the speed of the balloon if the man stops climbing

When the man stops climbing, there is no relative motion between the man on the ladder and the balloon.

Thus, the speed of the balloon will be zero.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

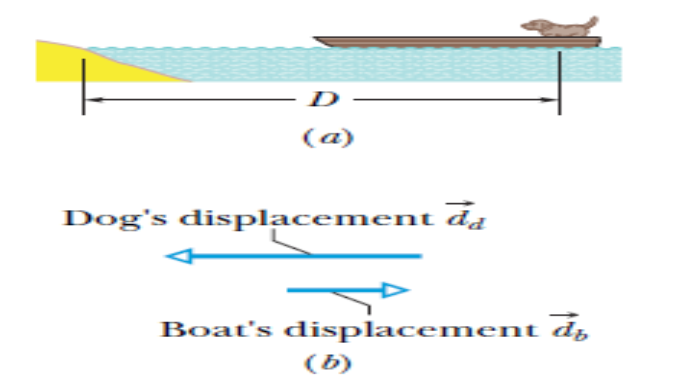

In Figure a,4.5 kg dog stand on the 18 kg flatboat at distance D = 6.1 m from the shore. It walks 2.4 mThe distance between the dog and shore is . along the boat toward shore and then stops. Assuming no friction between the boat and the water, find how far the dog is then from the shore. (Hint: See Figure b.)
