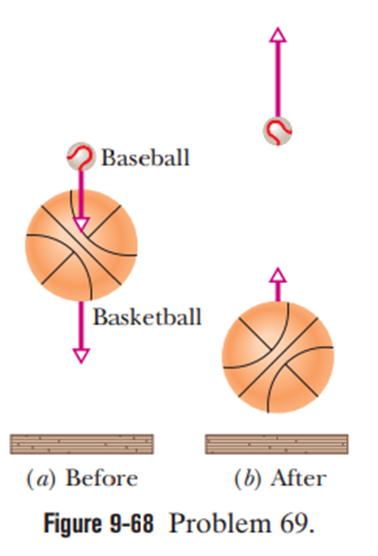

A small ball of mass m is aligned above a larger ball of mass M=0.63 kg (with a slight separation, as with the baseball and basketball of Fig. 9-68a), and the two are dropped simultaneously from a height of h=1.8 m. (Assume the radius of each ball is negligible relative to h.) (a) If the larger ball rebounds elastically from the floor and then the small ball rebounds elastically from the larger ball, what value ofm results in the larger ball stopping when it collides with the small ball? (b) What height does the small ball then reach (Fig.9-68b)?

Short Answer

Expert verified

a) The value of mresults in the larger ball stopping when it collides with the small ball is, m=0.21 kg.

b) The small ball reaches a height of h'=7.2m.

Step by step solution

01

Step 1: Given Data

The mass of larger ball is,M=0.63kg.

The two balls are dropped simultaneously from the height h=1.8m.

02

Determining the concept

By usingtheconservation of mechanical energy and by finding thevelocity of the ball of massMand massmafter collision, find thevalue ofthat result in the larger ball stopping when it collides with the small ball and theheight that the small ball reaches.

Formulae are as follow:

The velocity of the ball of massMafter collision is,vMf=M-mM+mvMi+2mM+mvmi

The velocity of the ball of massafter collision is,role="math" localid="1661312732417" vmf=-m-Mm+M2gh+2MM+m2gh

The velocity is,vMi=vmi=2gh

The conservation of mechanical energy is,Mgh=12Mv2

03

(a) Determining the value of  results in the larger ball stopping when it collides with the small ball

Here, the initial kinetic energy is zero, the initial gravitational potential energy is Mgh, the final kinetic energy is 12Mv2and the final potential energy is zero. Thus, the conservation of mechanical energy is given by,

Mgh=12Mv2

And,

v=2gh

The collision of the ball ofM with the floor is an elastic collision of the light object that reversesthe direction without change in magnitude. After the collision, the ball is travelling upward with speedv=2gh. The ball of massis traveling downward withthe same speed.

Hence, the velocity of the ball of mass M after collision is,

vMf=M-mM+mvMi+2mM+mvmivMf=M-mM+m2gh-2mM+m2ghvMf=M-3mM+m2gh

For this to be zero,m=M3,

m=M3m=0.633m=0.21kg

Hence,the value of results in the larger ball stopping when it collides with the small ball is, m=0.21 kg.

04

(b) Determining the height that the small ball reaches

Similarly, the velocity of the ball of massmafter the collision is given by,

vMf=m-Mm+M2gh+2mM+m2ghvmf=3M-mM+m2gh

Substituting M=3m,

vmf=22gh

Now, the initial kinetic energy is,12mvmf2, initial potential energy is zero, final kinetic energy is zero and final potential energy is mgh. Thus, by applying conservation of mechanical energy,

12mvmf2=mgh'h'=vmf22gh'=4×2gh2gh'=4hh'=4×1.8h'=7.2m

Hence,the small ball reaches a height ofh'=7.2m.

Therefore, by using the conservation of mechanical energy and by finding the velocity of the balls after collision, the height of the ball can be found.
