How much work is done by the boy pulling his sister 30.0 m in a wagon as shown in Figure 7.36? Assume no friction acts on the wagon.

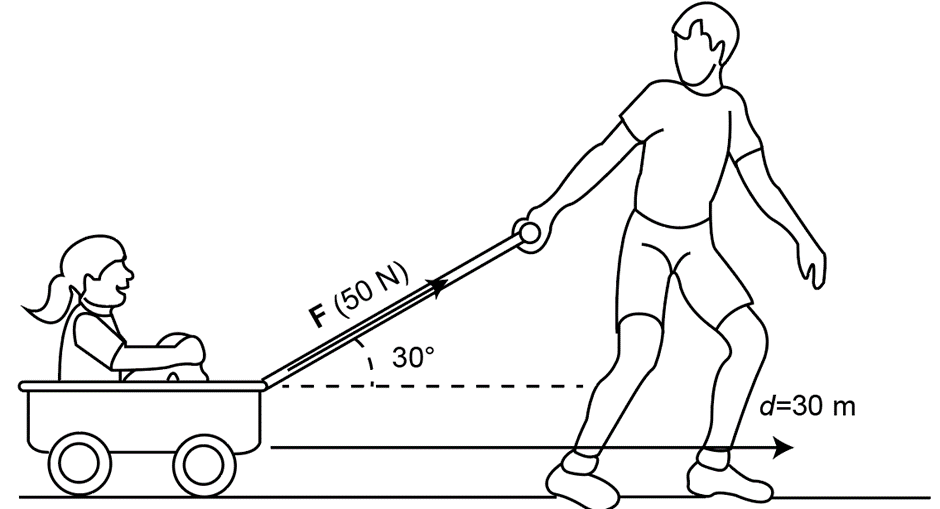

Figure 7.36 The boy does work on the system of the wagon and the child when he pulls them as shown.

Short Answer

Expert verified

The work done by the boy pulling her sister is \(1299{\rm{ J}}\).

Step by step solution

01

Definition of Concept

Work: Work is the product of the component of force in the displacement direction and the magnitude of the displacement.

02

Calculate the work done

Consider the given information:

By applying a force at an angle from the horizontal a boy pulls her sister to a distance of\(30.0{\rm{ m}}\)

The work done is given as,

\(W = Fd\cos \theta \)

Here,\(F\)is the magnitude of the force,\(d\)is the magnitude of displacement, and\(\theta \)is the angle between the force vector and the displacement vector.

Putting all known values,

\(\begin{aligned}{}W &= \left( {50.0{\rm{ N}}} \right) \times \left( {30.0{\rm{ m}}} \right) \times \cos \left( {30^\circ } \right)\\ &= 1299{\rm{ J}}\end{aligned}\)

Therefore, the required work is done by the boy pulling her sister is \(1299{\rm{ J}}\).

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A car advertisement claims that its \(900 - {\rm{kg}}\) car accelerated from rest to \(30.0{\rm{ m}}/{\rm{s}}\) and drove \(100{\rm{ km}}\), gaining \(3.00{\rm{ km}}\) in altitude, on \(1.0{\rm{ gal}}\) of gasoline. The average force of friction including air resistance was \(700{\rm{ N}}\). Assume all values are known to three significant figures.

(a) Calculate the car’s efficiency.

(b) What is unreasonable about the result?

(c) Which premise is unreasonable, or which premises are inconsistent?

Suppose a car travels\(108{\rm{ km}}\)at a speed of\(30.0\,{\rm{m}}/{\rm{s}}\), and uses\(2.0{\rm{ gal}}\)of gasoline. Only\(30\% \)30% of the gasoline goes into useful work by the force that keeps the car moving at constant speed despite friction. (See Table 7.1 for the energy content of gasoline.)

(a) What is the magnitude of the force exerted to keep the car moving at constant speed?

(b) If the required force is directly proportional to speed, how many gallons will be used to drive\(108{\rm{ km}}\) at a speed of \(28.0{\rm{ m}}/{\rm{s}}\)?

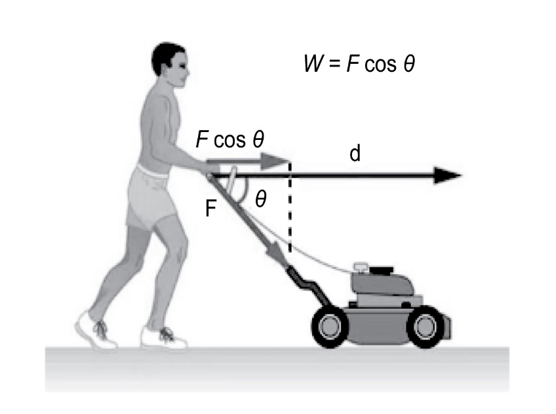

The person in the figure does work on the lawn mower. Under what conditions would the mower gain energy? Under what conditions would it

lose energy?

(a) What force must be supplied by an elevator cable to produce an acceleration of 0.800 m/s2 against a 200-N frictional force, if the mass of the loaded elevator is 1500 kg?

(b) How much work is done by the cable in lifting the elevator 20.0 m?

(c) What is the final speed of the elevator if it starts from rest?

(d) How much work went into thermal energy?

Work done on a system puts energy into it. Work done by a system removes energy from it. Give an example for each statement.
