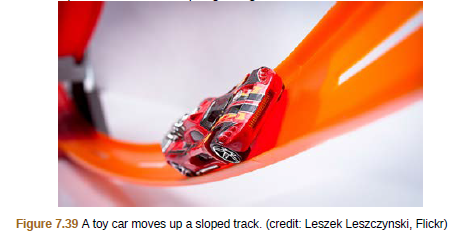

A 100-g toy car is propelled by a compressed spring that starts it moving. The car follows the curved track in Figure 7.39. Show that the final speed of the toy car is 0.687 m/s if its initial speed is 2.00 m/s and it coasts up the frictionless slope, gaining 0.180 m in altitude.

Short Answer

Expert verified

Proved that the final speed of the toy car is 0.687 m/s.

Step by step solution

01

Conservation of energy

Conservation of energy: The universe's total energy is conserved. According to conservation of energy, energy neither be created not be destroyed; only the form of energy can be changed.

For a mechanical system, the conservation of energy is given as,

KEi+PEi=KEf+PEf

Here, KEiis the initial kinetic energy, PEiis the initial potential energy, KEfis the final kinetic energy, and PEfis the final potential energy.

02

The Final speed of the toy car

From the conservation of energy,

KEi+PEi=KEf+PEf12mvi2+mghi=12mvf2+mghf (1.1)

Here, m is the mass of the toy car m=100g,vi is the initial speed of the toy car vi=2.00m/s, g is the acceleration due to gravity g=9.8m/s2,vf is the final speed of the toy car, and hfis the maximum height attained by the toy car on a frictionless slope hf=0.180m.

Rearranging equation (1.1) in order to get an expression for the final speed of the toy car,

vf=vi2+2ghi-hf

Putting all known values,

vf=2.00m/s2+2×9.8m/s2×0-0.180m=0.687m/s

Hence proved, the final speed of the toy car is 0.687m/s.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

(a) What is the average useful power output of a person who does \begin{aligned}6.00 \times {10^6}{\rm{ J}} \end{aligned}of useful work in 8.00 h?

(b) Working at this rate, how long will it take this person to lift 2000 kgof bricks 1.50 mto a platform? (Work done to lift his body can be omitted because it is not considered useful output here.)

Suppose a 350-g kookaburra (a large kingfisher bird) picks up a 75-g snake and raises it 2.5 m from the ground to a branch.

(a) How much work did the bird do on the snake?

(b) How much work did it do to raise its own center of mass to the branch?

The awe-inspiring Great Pyramid of Cheops was built more than 4500 years ago. Its square base, originally 230 m on a side, covered 13.1 acres, and it was 146 m high, with a mass of about 7×109 kg. (The pyramid’s dimensions are slightly different today due to quarrying and some sagging.) Historians estimate that 20,000 workers spent 20 years to construct it, working 12-hour days, 330 days per year.

(a) Calculate the gravitational potential energy stored in the pyramid, given its center of mass is at one-fourth its height.

(b) Only a fraction of the workers lifted blocks; most were involved in support services such as building ramps (see Figure 7.45), bringing food and water, and hauling blocks to the site. Calculate the efficiency of the workers who did the lifting, assuming there were 1000 of them and they consumed food energy at the rate of 300 kcal/h. What does your answer imply about how much of their work went into block-lifting, versus how much work went into friction and lifting and lowering their own bodies?

(c) Calculate the mass of food that had to be supplied each day, assuming that the average worker required 3600 kcal per day and that their diet was 5% protein, 60% carbohydrate, and 35% fat. (These proportions neglect the mass of bulk and nondigestible materials consumed.)

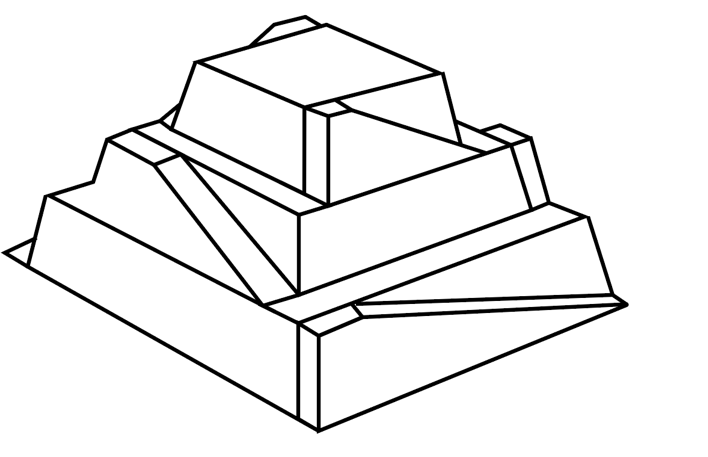

Figure 7.45 Ancient pyramids were probably constructed using ramps as simple machines. (credit: Franck Monnier, Wikimedia Commons)

List four different forms or types of energy. Give one example of a conversion from each of these forms to another form.

A shopper pushes a grocery cart 20.0 m at constant speed on level ground, against a 35.0 N frictional force. He pushes in a direction 25.0º below the horizontal.

(a) What is the work done on the cart by friction?

(b) What is the work done on the cart by the gravitational force?

(c) What is the work done on the cart by the shopper?

(d) Find the force the shopper exerts, using energy considerations.

(e) What is the total work done on the cart?
