Chapter 3: Q52PE (page 124)

Bryan Allen pedaled a human-powered aircraft across the English Channel from the cliffs of Dover to Cap Gris-Nez on June 12, 1979. (a) He flew for169min at an average velocity of3.53m/s in a direction45osouth of east. What was his total displacement? (b) Allen encountered a headwind averaging2.00m/s almost precisely in the opposite direction of his motion relative to the Earth. What was his average velocity relative to the air? (c) What was his total displacement relative to the air mass?

Short Answer

Expert verified

(a) The displacement covered by the person is35700meter.

(b) The average velocity relative with air speed is5.53m/s.

(c) Total displacement relative to the air velocity is 55900meter.

Step by step solution

01

Definition of velocity

The directional speed of an item in motion is an indication of its rate of change in position as seen from a specific point of view and measured by a specific time standard.

02

Given data

The velocity can be said as is 3.53m/s.

The velocity is making some angle45odegree with the x axis.

The time taken by him is 169min, which can be converted into seconds

The gravitational acceleration is-9.8m/s2

03

Displacement of the body

a) The displacement of the body is

Vx炉=xt3.53=x10100x=3.57x104m

The displacement covered by the person is35700meter.

b) The velocity of the considering the wind

Vw=V-VairVw=3.53--2=5.53鈥�m/s

The average velocity relative with air speed is5.53m/s.

c) Total displacement relative to the air velocity is

Vx炉=xt5.53=x10100x=5.59x104m

Total displacement relative to the air velocity is55900meter.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

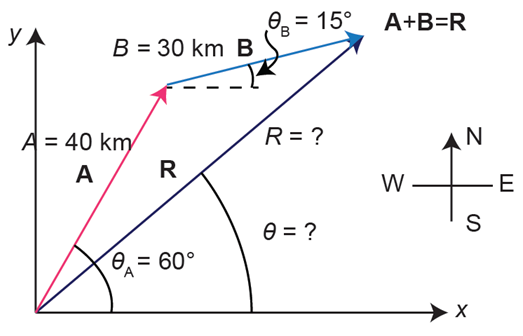

Suppose a pilot flies40.0kmin a direction60掳 north of east and then flies in a direction role="math" localid="1668679997174" 15掳north of east as shown in Figure 3.63. Find her total distance Rfrom the starting point and the direction 胃of the straight-line path to the final position. Discuss qualitatively how this flight would be altered by a wind from the north and how the effect of the wind would depend on both wind speed and the speed of the plane relative to the air mass.

Prove that the trajectory of a projectile is parabolic, having the form y=ax+bx2. To obtain this expression, solve the equation x=voxtfor and substitute it into the expression for y=voyt1(1/2)gt2(These equations describe the xand y positions of a projectile that starts at the origin.) You should obtain an equation of the form y=ax+bx2where a and bare constants.

(a) A daredevil is attempting to jump his motorcycle over a line of buses parked end to end by driving up a\(32^\circ \)ramp at a speed of\(40.0{\rm{ m}}/{\rm{s}}\)\(\left( {144{\rm{ km}}/{\rm{h}}} \right)\). How many buses can he clear if the top of the takeoff ramp is at the same height as the bus tops and the buses are\(20.0{\rm{ m}}\)long?

(b) Discuss what your answer implies about the margin of error in this act鈥攖hat is, consider how much greater the range is than the horizontal distance he must travel to miss the end of the last bus. (Neglect air resistance.)

Suppose you add two vectors A and B. What relative direction between them produces the resultant with the greatest magnitude? What is the maximum magnitude? What relative direction between them produces the resultant with the smallest magnitude? What is the minimum magnitude?

Repeat Exercise using analytical techniques, but reverse the order of the two legs of the walk and show that you get the same final result. (This problem shows that adding them in reverse order gives the same result鈥攖hat is, B+A=A+B.) Discuss how taking another path to reach the same point might help to overcome an obstacle blocking you other path.
