Chapter 3: Q5CQ (page 119)

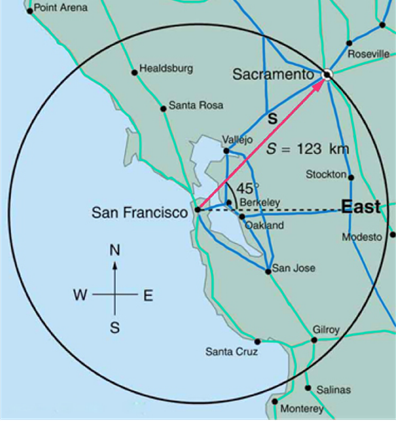

If an airplane pilot is told to fly 123 km in a straight line to get from San Francisco to Sacramento, explain why he could end up anywhere on the circle . What other information would he need to get to Sacramento?

Short Answer

Expert verified

To get to Sacremento, the pilot will need an additional information about the direction, which is 45掳 north-east.

Step by step solution

01

Displacement

A displacement is the shortest path between the initial and final positions of a body. It is a vector quantity, which cannot be defined completely without direction.

02

Missing information

If a pilot is informed to fly 123 km in a straight line, he could end anywhere on the circumference of the circle of radius 123 km.

In order to reach Sacramento from San Francisco, he must fly 45掳north-east along a straight line. Here, 45掳north-east is the direction of the displacement vector, whose initial position is San Francisco, and the final position is Sacramento.

Hence, to get to Sacremento, the pilot will need an additional information about the direction, which is 45掳 north- east.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

If you take two steps of different sizes, can you end up at your starting point? More generally, can two vectors with different magnitudes ever add to zero? Can three or more?

Answer the following questions for projectile motion on level ground assuming negligible air resistance (the initial angle being neither\(0^\circ \)nor\(90^\circ \)):

(a) Is the acceleration ever zero?

(b) Is the acceleration ever in the same direction as a component of velocity?

(c) Is the acceleration ever opposite in direction to a component of velocity?

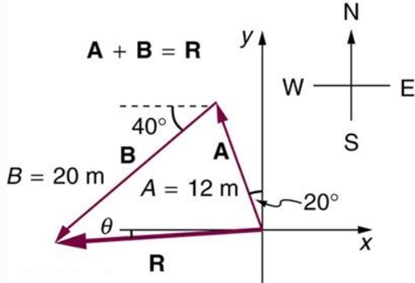

Repeat the problem above, but reverse the order of the two legs of the walk; show that you get the same final result. That is, you first walk leg \({\rm{B}}\), which is \(20.0\;{\rm{m}}\) in a direction exactly \(40^\circ \) south of west, and then leg \({\rm{A}}\), which is \(12.0\;{\rm{m}}\) in a direction exactly \(20^\circ \) west of north. (This problem shows that \({\rm{A}} + {\rm{B}} = {\rm{B}} + {\rm{A}}\).)

A rugby player passes the ball\(7.00{\rm{ m}}\)across the field, where it is caught at the same height as it left his hand.

(a) At what angle was the ball thrown if its initial speed was\(12.0{\rm{ m}}/{\rm{s}}\), assuming that the smaller of the two possible angles was used?

(b) What other angle gives the same range, and why would it not be used?

(c) How long did this pass take?

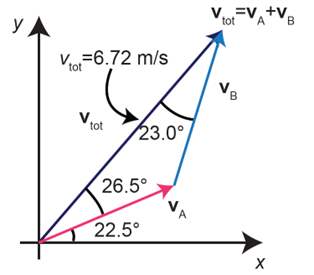

Find the magnitudes of velocities\({v_A}\)and\({v_B}\)in Figure 3.57.

The two velocities\({{\rm{v}}_{\rm{A}}}\)and\({{\rm{v}}_{\rm{B}}}\)add to give a total \({{\rm{v}}_{{\rm{tot}}}}\).
