(a) The hot and neutral wires supplying DC power to a light-rail commuter train car 800Aand are separated by 75.0cm What is the magnitude and direction of the force between50.0mof these wires? (b) Discuss the practical consequences of this force, if any.

Short Answer

Expert verified

(a) The Force between the two wires is8.53N

Step by step solution

01

Definition of magnitude and direction

In physics, a force is an effect that can alter an object's motion. An object with mass can change its velocity, or accelerate, as a result of a force. Intuitively, the force can be described as a push or a pull. A force is a vector quantity since it has both magnitude and direction.

02

Calculate the force between the wire(a)

To get the force between the two wires, we will use the equation

F=0l1l2l2蟺谤

...................................(1)

and as the direction of the current in the wires are in opposite direction, the force between them will be repulsive.

Using the equation (1), we will determine the force such that,

localid="1654229999479">F=0l1l2L2蟺谤=(410-7N/Az)(800A)(800A)(50m)20.75m=8.53N

Therefore, the Force between the two wires is8.53N

03

Discuss practical consequences of force(b)

As the force is repulsive, this will prevent the two wires from touching each other and creating a short circuit.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

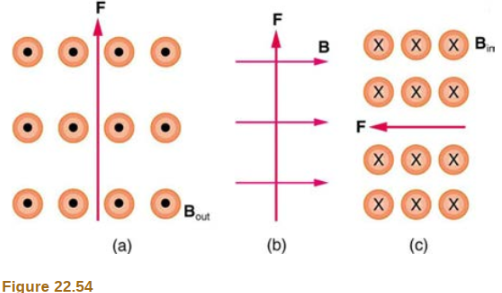

What is the direction of a current that experiences the magnetic force shown in each of the three cases in Figure22.54, assuming the current runs perpendicular to B?
