A patient with a pacemaker is mistakenly being scanned for an MRI image. A 10.0-cm-long section of pacemaker wire moves at a speed of 10.0 cm/s perpendicular to the MRI unit鈥檚 magnetic field and a 20.0-mV Hall voltage is induced What is the magnetic field strength?

Short Answer

Expert verified

The required magnetic field is2.00T

Step by step solution

01

Given information

The diameter of the pacemaker wire is L=10.0cm(1m100cm)=0.1m

The speed of the moving wire isv=10.00cm/s(1m100cm)=0.1m/s

Induced Hall voltage isE=20.0mV(103V1mV)=2.00脳10-2V

02

Define the Hall effect

The Hall effect defines the generation of induced voltage due to the motion of charge carriers in a perpendicular applied magnetic field and can be defined as,

E=BLv鈥︹赌︹赌︹赌︹赌︹赌︹赌�(1)

03

Evaluating the magnetic field

Substitute the given data in equation (1), which will result,

B=ELv=2.00脳10-2V(0.1m)脳(0.1m/s)=2.00T

Therefore, the required magnetic field is2.00T

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

The wire carrying 400Ato the motor of a commuter train feels an attractive force of4.00脳10-3N/mdue to a parallel wire carrying 5.00Ato a headlight. (a) How far apart are the wires? (b) Are the currents in the same direction?

Consider a mass separator that applies a magnetic field perpendicular to the velocity of ions and separates the ions based on the radius of curvature of their paths in the field. Construct a problem in which you calculate the magnetic field strength needed to separate two ions that differ in mass, but not charge, and have the same initial velocity. Among the things to consider are the types of ions, the velocities they can be given before entering the magnetic field, and a reasonable value for the radius of curvature of the paths they follow. In addition, calculate the separation distance between the ions at the point where they are detected.

(a) What is the angle between a wire carrying an 8.00鈥�Acurrent and the1.20鈥�Tfield it is in if 50.0cm of the wire experiences a magnetic force of 2.40N? (b) What is the force on the wire if it is rotated to make an angle of 90潞 with the field?

A proton moves at\({\rm{7}}{\rm{.50 \times 1}}{{\rm{0}}^{\rm{7}}}{\rm{ m/s}}\)perpendicular to a magnetic field. The field causes the proton to travel in a circular path of radius\({\rm{0}}{\rm{.800 m}}\). What is the field strength?

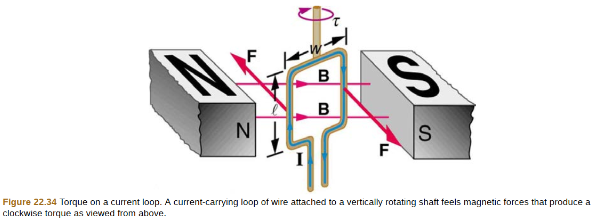

Make a drawing and use RHR-2 to find the direction of the magnetic field of a current loop in a motor (such as in Figure 22.34). Then show that the direction of the torque on the loop is the same as produced by like poles repelling and unlike poles attracting.
