(a) By what factor must you change the distance between two-point charges to change the force between them by a factor of \(10\)? (b) Explain how the distance can either increase or decrease by this factor and still cause a factor of \(10\) change in the force.

Short Answer

Expert verified

(a) The distance must be reduced by a factor of 0.316 in order to change the force between the point charges by a factor of 10.

(b) Coulomb force due to two-point charges is inversely proportional to the square of their separation.

Step by step solution

01

Electrostatic force

The force of attraction or repulsion that exists between two-point charges separated by some distance in space is known as electrostatic force.

02

Comparing forces

(a)

The electrostatic force between two-point charges q and Q separated by some distancer is given as,

\(F = \frac{{KqQ}}{{{r^2}}}\)

When the separation between the charges is changed to \(r'\), the new electrostatic force is given as,

\(F' = \frac{{KqQ}}{{{{r'}^2}}}\)

Taking the ratio of equations (1.1) and (1.2),

\(\begin{aligned} \frac{F}{{F'}} &= \frac{{\frac{{KqQ}}{{{r^2}}}}}{{\frac{{KqQ}}{{{{r'}^2}}}}}\\\frac{F}{{F'}} &= {\left( {\frac{{r'}}{r}} \right)^2}\end{aligned}\)

Since \(F' = 10F\). Therefore,

\(\begin{aligned} \frac{F}{{10F}} &= {\left( {\frac{{r'}}{r}} \right)^2}\\{\left( {\frac{{r'}}{r}} \right)^2} &= \frac{1}{{10}}\\\frac{{r'}}{r} &= \frac{1}{{\sqrt {10} }}\\ &= 0.316\end{aligned}\)

Hence, the distance must be reduced by a factor of 0.316 in order to change the force between the point charges by a factor of 10.

03

Effect of the distance on the force

(b)

Since the Coulomb force due to two-point charges is inversely proportional to the square of their separation. That is,

\({\rm{F}} \propto \frac{{\rm{1}}}{{{{\rm{r}}^{\rm{2}}}}}\)

Hence, to increase the force between two-point charges, the separation must be decreased.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Why must the test charge \({\rm{q}}\) in the definition of the electric field be vanishingly small?

(a) What is the direction and magnitude of an electric field that supports the weight of a free electron near the surface of Earth? (b) Discuss what the small value for this field implies regarding the relative strength of the gravitational and electrostatic forces.

An electron has an initial velocity of\(5.00 \times {10^6}{\rm{ m}}/{\rm{s}}\)in a uniform\(2.00 \times {10^5}{\rm{ N}}/{\rm{C}}\)strength electric field. The field accelerates the electron in the direction opposite to its initial velocity. (a) What is the direction of the electric field? (b) How far does the electron travel before coming to rest? (c) How long does it take the electron to come to rest? (d) What is the electron’s velocity when it returns to its starting point?

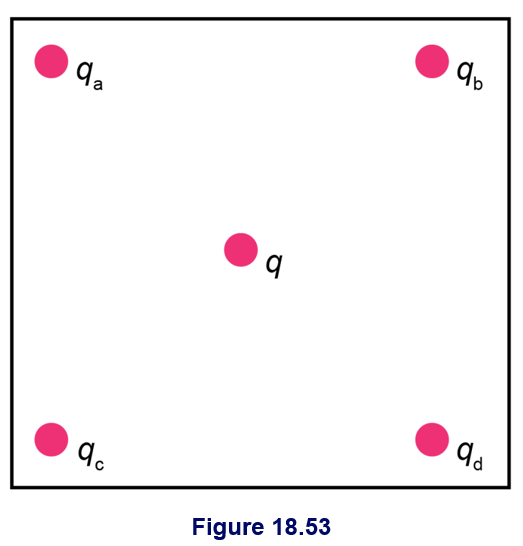

Find the total Coulomb force on the charge\(q\)in Figure 18.53, given that\(q = {\rm{1}}{\rm{.00 }}\mu {\rm{C}}\),\({q_a} = {\rm{2}}{\rm{.00 }}\mu {\rm{C}}\),\({q_b} = - {\rm{3}}{\rm{.00 }}\mu {\rm{C}}\),\({q_c} = - {\rm{4}}{\rm{.00 }}\mu {\rm{C}}\), and\({q_d} = + {\rm{1}}{\rm{.00 }}\mu {\rm{C}}\). The square is\({\rm{50}}{\rm{.0 cm}}\)on a side.

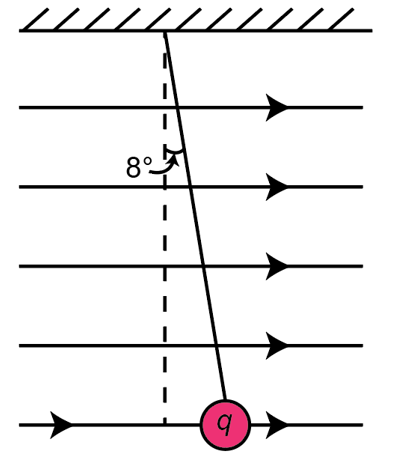

A\(5.00{\rm{ g}}\)charged insulating ball hangs on a\(30.0{\rm{ cm}}\)long string in a uniform horizontal electric field as shown in Figure 18.56. Given the charge on the ball is\(1.00{\rm{ }}\mu {\rm{C}}\), find the strength of the field.

Figure 18.56 A horizontal electric field causes the charged ball to hang at an angle of\(8.00^\circ \).
