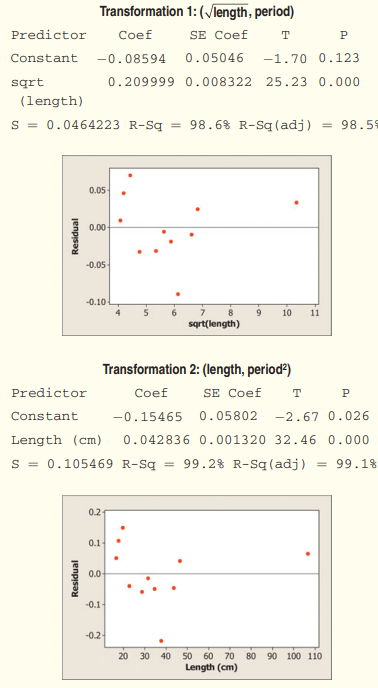

The swinging pendulum Refer to Exercise 33. Here is Minitab output from separate regression analyses of the two sets of transformed pendulum data:

Do each of the following for both transformations.

(a) Give the equation of the least-squares regression line. Define any variables you use.

(b) Use the model from part (a) to predict the period of a pendulum with length of 80 centimeters. Show your work.

(c) Interpret the value of s in context

Short Answer

Expert verified

a). Transformation 1:P^eriod=-0.08594+0.209999length

Transformation 2:P^eriod2=-0.15465+0.042836length

b). Transformation 1:1.7924

Transformation 2:1.8089

c). The expected error from the prediction of the square of the period is 0.105469.

Step by step solution

01

Part (a) Step 1: Given Information

02

Part (a) Step 2: Given Information

In the question there are two transformations given and the computer output for each is also given. Thus, we have,

For transformation 1:

Thus, the general equation of the regression equation is as:

localid="1650609318117" P^eriod=a+blength

Thus, the value of the slope and the constant is given in the computer output as:

a=-0.08594

b=0.209999

Thus, the regression equation is as follows:

localid="1650609326733" P^eriod=a+blength

localid="1650609346683" P^eriod=-0.08594+0.209999length

03

Part (a) Step 3: Explanation

For transformation 2 :

Thus, the general equation of the regression equation is as:

P^eriod2=a+blength

Thus, the value of the slope and the constant is given in the computer output as:

a=-0.15465

b=0.042836

Thus, the regression equation is as follows:

localid="1650609373265" P^eriod2=a+blength

localid="1650609386019" P^eriod2=-0.15465+0.042836length

04

Part (b) Step 4: Given Information

05

Part (b) Step 5: Explanation

We need to find out the period of a pendulum with the length 80centimeters using the part (a) as:

For transformation 1 :

Thus, the regression equation is as follows:localid="1650609408367" P^eriod=a+blength

P^eriod=-0.08594+0.209999length

Then by evaluating we have,

localid="1650609425383" P^eriod=a+blength

localid="1650609440792" P^eriod=-0.08594+0.209999length

=-0.08594+0.20999980

=1.7924

06

Part (b): Step 6: Explanation

For transformation 2 :

Thus, the regression equation is as follows:

Period=2a+blength

Period2=-0.15465+0.042836length

Then by evaluating we have,

localid="1650609465411" Period=a+blength

Period2=-0.15465+0.04283680

Period2=3.27223

Period=3.27223

Period=1.8089

07

Part (c) Step 7: Given Information

08

Part (c) Step 8: Explanation

As we need to interpret the value of s in this context. Thus, we have,

For transformation 1:

Thus, the regression equation is as follows:

P^eriod=a+blength

P^eriod=-0.08594+0.209999length

And the value of sis given as,

s=0.0464223

This means that the expected error from the prediction of the period is 0.0464223.

09

Part (c) Step 9: Explanation

For transformation 2:

Thus, the regression equation is as follows:

Period2=a+blength

localid="1650609508643" Period2=-0.15465+0.042836length

And the value of sis given as,

s=0.105469

This means that the expected error from the prediction of the square of the period is 0.105469.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

How well materials conduct heat matters when designing houses, for example. Conductivity is measured in terms of watts of heat power transmitted per square meter of surface per degree Celsius of temperature difference on the two sides of the material. In these units, glass has conductivity about 1. The National Institute of Standards and Technology provides exact data on properties of materials. Here are measurements of the heat conductivity of 11 randomly selected pieces of a particular type of glass:

1.11 1.07 1.11 1.07 1.12 1.08 1.08 1.18 1.18 1.18 1.12

Is there convincing evidence that the conductivity of this type of glass is greater than 1? Carry out a test to help you answer this question.

Determining tree biomass It is easy to measure the 鈥渄iameter at breast height鈥 of a tree. It鈥檚 hard to measure the total 鈥渁boveground biomass鈥 of a tree, because to do this you must cut and weigh the tree. The biomass is important for studies of ecology, so ecologists commonly estimate it using a power model. Combining data on 378trees in tropical rain forests gives this relationship between biomass y measured in kilograms and diameter x measured in centimeters:

lny^=-2.00+2.42lnx

In the casting of metal parts, molten metal flows through a 鈥済ate鈥 into a die that shapes the part. The gate velocity (the speed at which metal is forced through the gate) plays a critical role in die casting. A firm that casts cylindrical aluminium pistons examined a random sample of 12pistons formed from the same alloy of metal. What is the relationship between the cylinder wall thickness (inches) and the gate velocity (feet per second) chosen by the skilled workers who do the casting? If there is a clear pattern, it can be used to direct new workers or to automate the process. A scatterplot of the data is shown below

A least-squares regression analysis was performed on the data. Some computer output and a residual plot are shown below. A Normal probability plot of the residuals (not shown) is roughly linear.

Do these data provide convincing evidence of a straight-line relationship between thickness and gate velocity in the population of pistons formed from this alloy of metal? Carry out an appropriate significance test at the =0.05level.

Refer to Exercise 5.

(a) Interpret the value of SEb in context.

(b) Find the critical value for a 90% confidence interval for the slope of the true regression line. Then calculate the confidence interval. Show your work.

(c) Interpret the interval from part (b) in context.

(d) Explain the meaning of 鈥90% confident鈥 in context.

Stats teachers' cars A random sample of AP Statistics teachers were asked to report the age (in years) and mileage of their primary vehicles. A scatterplot of the data is shown below.

Computer output from a least-squares regression analysis of these data is shown below. Assume that the conditions for regression inference are met.

(a) Verify that the 95% confidence interval for the slope of the population regression line is (9016.4, 14,244.8 ).

(b) A national automotive group claims that the typical driver puts 15,000 miles per year on his or her main vehicle. We want to test whether AP Statistics teachers are typical drivers. Explain why an appropriate pair of hypotheses for this test is H0:=15,000versus Ha:15,000.

(c) What conclusion would you draw for this significance test based on your interval in part (a)? Justify your answer.
