Chapter 3: Q. 55 (page 193)

55. Bird colonies Refer to Exercise 53.
(a) Use your calculator to make a residual plot. Describe what this graph tells you about how well the line fits the data.
(b) Which point has the largest residual? Explain what this residual means in context.

Short Answer

Expert verified

(a) The data does not appear to have any distinct patterns, and the regression line looks to be a good fit for the data.

(b) The largest residual point is(66,6)

Step by step solution

01

Part (a) Step 1: Given information

By using the calculator to make a residual plot. To plot a graph to check the line fits the data.

02

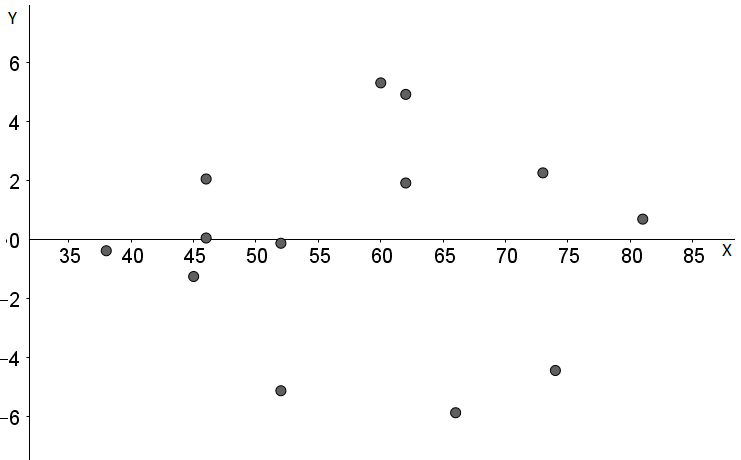

Part (a) Step 2: Explanation

Residuals are on the vertical axis and percent returns are on the horizontal axis, representing the difference between actual and expected levels.

In other words, there does not appear to be any distinctive pattern in the data, and the regression line appears to fit the data nicely.

03

Part (b) Step 1: Concept introduction

The residual value refers to the part of the variability in a dependent variable fragment that remains after the forecasters have taken account of the variability described in the study.

04

Part (b) Step 2: Explanation

Predicted values and residuals are presented in the table as follows:

Percent return (X)
New adults (Y)
Predicted Y (Y)
Residuals (Y-Y)
74
5
9.43656125
-4.43656125
66
6
11.86874481
-5.868744811
81
8
7.308400634
0.691599366
52
11
16.12506604
-5.125066043
73
12
9.740584195
2.259415805
62
15
13.08483659
1.915163409
52
16
16.12506604
-0.125066043
45
17
18.25322666
-1.253226659
62
18
13.08483659
4.915163409
46
18
17.94920371
0.050796287
60
19
13.69288248
5.307117518
46
20
17.94920371
2.050796287
38
20
20.38138727
-0.381387275

Due to its large deviation from a line, the point (66,6)has the largest residuals. This makes it an outlier in the above table.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

What affects correlation? Make a scatterplot of the following data:

The correlation for these data is 0.5. What is responsible for reducing the correlation to this value despite a strong straight-line relationship between xand yin most of the observations?

Do heavier people burn more energy? Metabolic rate, the rate at which the body consumes energy, is important in studies of weight gain, dieting, and exercise. We have data on the lean body mass and resting metabolic rate for 12women who are subjects in a study of dieting. Lean body mass, given in kilograms, is a person鈥檚 weight leaving out all fat. Metabolic rate is measured in calories burned per 24hours. The researchers believe that lean body mass is an important influence on metabolic rate.

(a) Make a scatterplot on your calculator to examine the researchers鈥� belief.

(b) Describe the direction, form, and strength of the relationship.

Oil and residuals The Trans-Alaska Oil Pipeline is a tube that is formed from 1/2-inch-thick steel and carries oil across 800miles of sensitive arctic and subarctic terrain. The pipe segments and the welds that join them were carefully examined before installation. How accurate are field measurements of the depth of small defects? The figure below compares the results of measurements on 100defects made in the field with measurements of the same defects made in the laboratory. The line y=x is drawn on the scatterplot.

(a) Describe the overall pattern you see in the scatterplot, as well as any deviations from that pattern.

(b) If field and laboratory measurements all agree, then the points should fall on the y=x line drawn on the plot, except for small variations in the measurements. Is this the case? Explain.

(c) The line drawn on the scatterplot (y=x) is not the least-squares regression line. How would the slope and y-intercept of the least-squares line compare? Justify your answer.

The scatterplots below show four sets of real data:

(a) repeats the manatee plot in Figures

(b) shows the number of named tropical storms and the number predicted before the start of hurricane season each year between 1984and 2007by William Gray of Colorado State University;

(c) plots the healing rate in micrometers (millionths of a meter) per hour for the two front limbs of several newts in an experiment; and

(d) shows stock market performance in consecutive years over a 56-year period.

For each graph, estimate the correlation r. Then interpret the value of r in context.

(a)

(b)

(c)

(d)

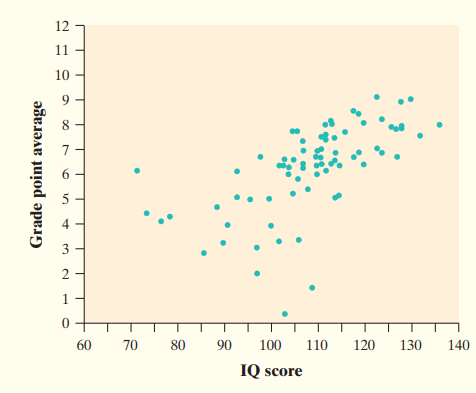

Do students with higher IQ test scores tend to do better in school? The figure below shows a scatterplot of IQ and school grade point average (GPA) for all 78seventh-grade students in a rural midwestern school. (GPA was recorded on a 12-point scale with , A+=12,A=11,A-=10,B+=9,鈥�,D-=1,andF=0.)2
