Chapter 1: Q31E (page 29)

The cumulative frequency and cumulative relativefrequency for a particular class interval are the sum offrequencies and relativefrequencies, respectively, forthat interval and all intervals lying below it. If, forexample, there are four intervals with frequencies 9,16, 13, and 12, then the cumulative frequencies are 9,25, 38, and 50, and the cumulative relative frequenciesare .18, .50, .76, and 1.00. Compute the cumulativefrequencies and cumulative relative frequencies for thedata of Exercise 24.

Short Answer

Expert verified

The cumulative frequency and the cumulative relative frequency is,

x

Cumulative frequency

Cumulative Relative Frequency

4000-4200

1

0.01

4200-4400

3

0.03

4400-4600

12

0.12

4600-4800

24

0.24

4800-5000

43

0.43

5000-5200

65

0.65

5200-5400

85

0.85

5400-5600

92

0.92

5600-5800

99

0.99

5800-6000

100

1

Step by step solution

01

Given information

The cumulative frequency and cumulative relative frequency for a particular class interval are the sum of frequencies and relative frequencies, respectively, for that interval and all intervals lying below it.

02

Compute the cumulative frequencies and cumulative relative frequencies

Referring to the exercise 24, we have,

x representing the shear strength (lb) of ultrasonic spot welds.

The table representing the frequency and relative frequency as,

x

Frequency

Relative Frequency

4000-4200

1

0.01

4200-4400

2

0.02

4400-4600

9

0.09

4600-4800

12

0.12

4800-5000

19

0.19

5000-5200

22

0.22

5200-5400

20

0.2

5400-5600

7

0.07

5600-5800

7

0.07

5800-6000

1

0.01

Using the given information, the cumulative frequency and the cumulative relative frequency is represented as,

x

Cumulative frequency

Cumulative Relative Frequency

4000-4200

1

0.01

4200-4400

3

0.03

4400-4600

12

0.12

4600-4800

24

0.24

4800-5000

43

0.43

5000-5200

65

0.65

5200-5400

85

0.85

5400-5600

92

0.92

5600-5800

99

0.99

5800-6000

100

1

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Anxiety disorders and symptoms can often be effectively treated with benzodiazepine medications. It isknown that animals exposed to stress exhibit a decrease in benzodiazepine receptor binding in the frontal cortex. Thearticle 鈥淒ecreased Benzodiazepine Receptor Binding in Prefrontal Cortex in Combat-Related Posttraumatic Stress Disorder鈥� (Amer. J. of Psychiatry, 2000: 1120鈥�1126) described the first study of benzodiazepine receptor binding in individuals suffering from PTSD. The accompanying data on a receptor binding measure (adjusted distribution volume) was read from a graph in the article.
PTSD: 10, 20, 25, 28, 31, 35, 37, 38, 38, 39, 39,
42, 46
Healthy: 23, 39, 40, 41, 43, 47, 51, 58, 63, 66, 67,
69, 72
Use various methods from this chapter to describe and summarize the data.

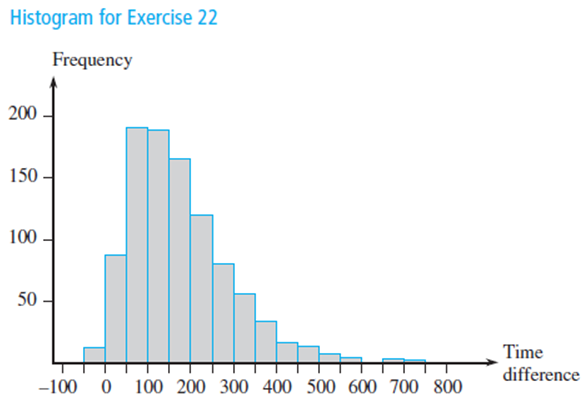

How does the speed of a runner vary over the course of a marathon (a distance of 42.195 km)? Consider determining both the time to run the first 5 km and the time to run between the 35-km and 40-km points, and then subtracting the former time from the latter time. A positive value of this difference corresponds to a runner slowing down toward the end of the race. The accompanying histogram is based on times of runners who participated in several different Japanese marathons (鈥淔actors Affecting Runners鈥� Marathon Performance,鈥� Chance, Fall, 1993: 24鈥�30).What are some interesting features of this histogram? What is a typical difference value? Roughly what proportion of the runners ran the late distance more quickly than the early distance?
