The given molecular formula bears one nitrogen, one oxygen, three carbons, and five hydrogens. The NMR spectrum of this compound has three major peaks, and IR also has some major peaks. This compound has two elements of unsaturation.

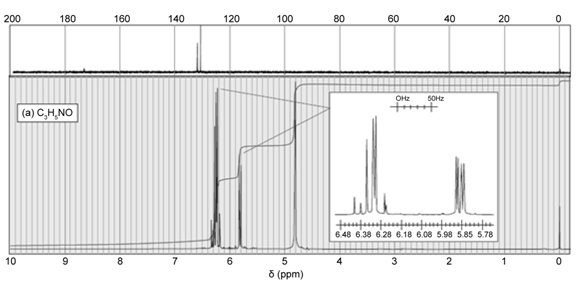

The chemical shift values are 5.8 ppm, 6.3 ppm, and 4.8 ppm. The chemical shift value of 5.8 ppm has a 1H multiplet of vinyl hydrogen present next to the carbonyl group.

The chemical shift value of 6.3 ppm has a 2H multiplet of vinyl hydrogen pair on the third carbon. The chemical shift value of 4.8 has a 2H multiplet of amide hydrogens.

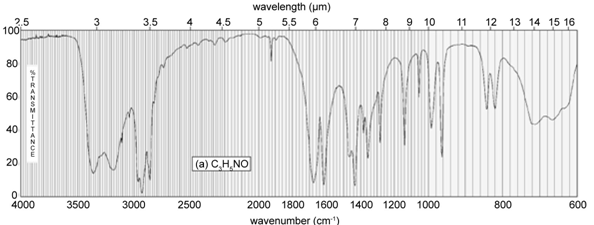

There are two peaks between which confirm the presence of the N-H bonds. There exists a strong peak at which is of C=O and is of C=C. Thus, the structure of the compound is given below.

The chemical shift values of carbon NMR are 171 ppm of carbonyl carbon and 69 ppm of C-O carbon. The chemical shift values of proton NMR are 4.3 ppm and 2.5 ppm. Both the chemical shift values are of the group.

There is one small peak at which is of C=O overtone. There is one strong peak at , which is of carbonyl ester. The C-O bond has a peak between and there is no C=C. Thus, the structure of the compound is as below.
