Magazine Chapter 4: Q220Q (page 583)
Question: Product A consists of two units of Subassembly B, three units of C, and one unit of D. B is composed of four units of E, and three units of F. C is made of two units of H and three units of D. H is made of five units of E and two units of G.
a. Construct a simple bill-of-materials (product structure tree).
b. Construct a product structure tree using low-level coding.
c. Construct an indented parts list.
d. To produce 100 units of A, determine the number of units of B, C, D, E, F, G, and H required.
Short Answer
Answer
A bill of materials (BOM) is a consolidated information source used in item manufacturing. It is a list of the things required to make an item and directions on putting it together.
Step by step solution
Understanding what is product structure tree
The product's hierarchical placement and classification of items in manufacturing are known as the product structure tree.

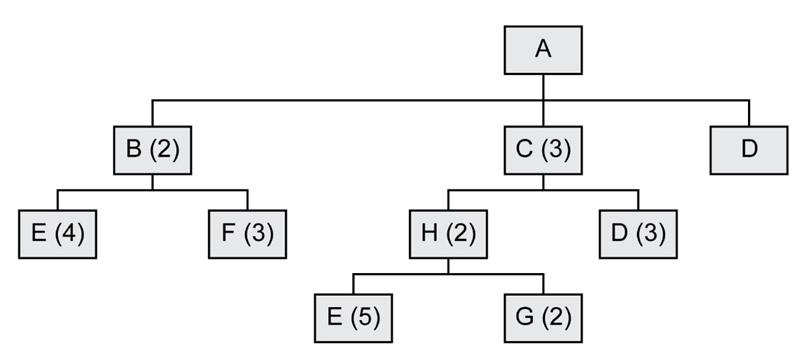

(a) Making product structure tree

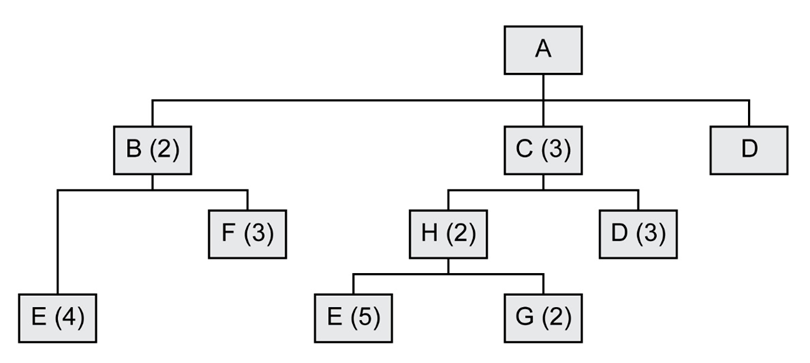

(b) Making a low-Level coded product structure tree
(c) Creating an intended part list
A.
B. (2)
E (4)
F (3)
C. (3)
D (3)
H (2)
E (5)
G (2)
D. (1)

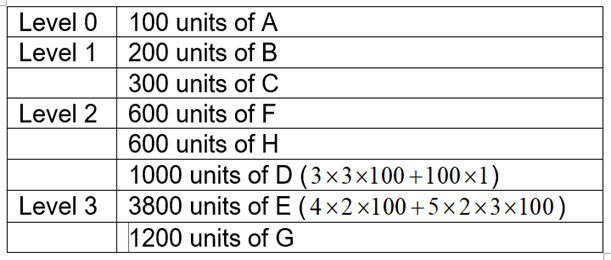

(d) Determining the number of units each unit will require to produce 100 units of A
