A turntable 1.50 m in diameter rotates at 75 rpm. Two speakers, each giving off sound of wavelength 31.3 cm, are attached to the rim of the table at opposite ends of a diameter. A listener stands in front of the turntable. (a) What is the greatest beat frequency the listener will receive from this system? (b) Will the listener be able to distinguish individual beats?

Short Answer

Expert verified

A) fbeat=38HzB) No, the listener will not be able to distinguish individual beats.

Step by step solution

01

Concept of the frequency of the sound emitted by the speakers

The frequency of the sound emitted by the speakers is fs=vλand the angular frequency of the turntable is vs=rϖand the frequency detected by the listener is fL=fs(vv∓vs)where, v is the speed of sound in the air, vs is the speed of speaker and speaker2 as well, fs is the frequency of the sound emitted by each speaker

02

Calculate the angular frequency of the turntable.

The speaker that will be moving toward the listener (speaker) and (speaker2) for the speaker that moves away from the listener as the turntable rotates.

So, let's find the frequency of the sound emitted by the speakers, which can be determined as follows

fs=vλ=34431.3×10-2=1100Hz

Now, the other thing we need to determine is the velocity of each speaker, where the velocity of the speakers is the same as the velocity of the table's rims, so we need to convert it to (rad/s)

vs=rÏ–where (r= 0.75 m) is the radius of the turntable and (w =75 rpm) is the angular frequency of the turntable and convert into rad/s

vs=0.75m×75rpm×2Ï€°ù²¹»å1rev×1min60svs=5.9m/s

03

Calculate fL1 and fL2

The frequency detected by the listener from speaker is fL=fsvv∓vs

Substitute the values in the above equation we get,

Use the minus sign in the denominator because the source "speaker " is moving toward the listener,

fL1=1100×344344-5.9fL1=1119Hz

Use the plus sign in denominator because the source "speaker2" is moving away from the listener:

fL2=1100×344344-5.9fL2=1081Hz

04

Calculate the beat frequency of the listener

A beat frequency of 38 Hz means that there will be a 38 pulse per second, so, no, the listener will not be able to distinguish individual beats.

fbeat=fL1-fL2=1119Hz-1081Hz=38Hz

Therefore, the beat frequency of the listener is 38Hz

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

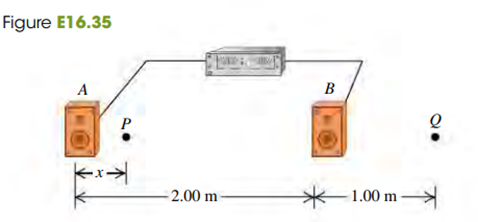

Two loudspeakers, A and B (see Fig. E16.35), are driven by the same amplifier and emit sinusoidal waves in phase. Speaker B is 2.00 m to the right of speaker A. The frequency of the sound waves produced by the loudspeakers is 206 Hz. Consider a point P between the speakers and along the line connecting them, a distance x to the right of A. Both speakers emit sound waves that travel directly from the speaker to point P. For what values of x will (a) destructive interference occur at P; (b) constructive interference occur at P? (c) Interference effects like those in parts (a) and (b) are almost never a factor in listening to home stereo equipment. Why not?

Two loudspeakers, A and B (Fig. E16.35), are driven by the same amplifier and emit sinusoidal waves in phase. Speaker B is 2.00 m to the right of speaker A. Consider point Q along the extension of the line connecting the speakers, 1.00 m to the right of speaker B. Both speakers emit sound waves that travel directly from the speaker to point Q. What is the lowest frequency for which (a) constructive interference occurs at point Q; (b) destructive interference occurs at point Q?

The portion of the string of a certain musical instrument between the bridge and upper end of the finger board (that part of the string that is free to vibrate) is \(60.0\;{\rm{cm}}\) long, and this length of the string has mass \(2.00\;{\rm{g}}\). The string sounds an \({A_4}\) note (\(440\;{\rm{Hz}}\)) when played.

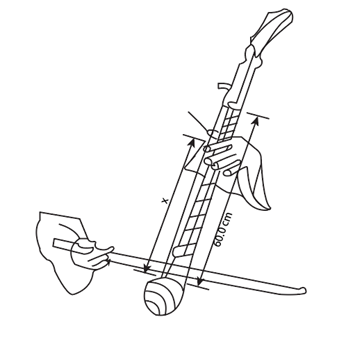

(a) Where must the player put a finger (what distance x from the bridge) to play a \({D_5}\) note (\(587\;{\rm{Hz}}\))? (See Fig. E15.45.) For both the \({A_4}\) and \({D_5}\) notes, the string vibrates in its fundamental mode.

(b) Without retuning, is it possible to play a \({G_4}\) note (\(392\;{\rm{Hz}}\)) on this string? Why or why not?

Which of the following wave functions satisfies the wave equation, Eq. (15.12)? (a)\(y\left( {x,t} \right) = Acos\left( {kx + \omega t} \right)\) ; (b)\(y\left( {x,t} \right) = Asin\left( {kx + \omega t} \right)\) ; (c) \(y\left( {x,t} \right) = A\left( {coskx + cos\omega t} \right)\) (d) For the wave of part (b), write the equations for the transverse velocity and transverse acceleration of a particle at point x.

Tsunami! On December 26, 2004 , a great earthquake occurred off the coast of Sumatra and triggered immense waves (tsunami) that killed some 200,000 people. Satellites observing these waves from space measured 800 km from one wave crest to the next and a period between waves of 1.0 hour . What was the speed of these waves in m/s and in km/hr? Does your answer help you understand why the waves caused such devastation?
