Chapter 2: Q6E (page 539)

Question: (a) In a liquid with density \({\bf{1300}}\;{\bf{kg/}}{{\bf{m}}^{\bf{3}}}\), longitudinal waves with frequency 400 Hz are found to have wavelength 8.00 m. Calculate the bulk modulus of the liquid. (b) A metal bar with a length of 1.50 m has density \({\bf{6400}}\;{\bf{kg/}}{{\bf{m}}^{\bf{3}}}\). Longitudinal sound waves take \({\bf{3}}{\bf{.90}} \times {\bf{1}}{{\bf{0}}^{ - {\bf{4}}}}\;{\bf{s}}\) to travel from one end of the bar to the other. What is Young鈥檚 modulus for this metal?

Short Answer

Expert verified

(a) The bulk modulus of liquid is \(1.331 \times {10^{10}}\;{\rm{Pa}}\) .

Step by step solution

01

Given data

The data given in the question can be listed below as;

  • The density of the liquid is,\(\rho = 1300\;{\rm{kg/}}{{\rm{m}}^{\rm{3}}}\) .
  • Frequency is,\(f = 400\;{\rm{Hz}}\).
  • Wavelength is,\(\lambda = 8.00\;{\rm{m}}\)
02

Concept

Longitudinal sound waves are a type of sound waves in which the vibration/oscillation of the particles is in the direction of the propagation of the moving wave in the medium they are traveling.

03

(a) Calculation of the bulk modulus of the liquid

The formula that we can use to calculate the bulk modulus of the liquid is given as,

\(B = {\lambda ^2}{f^2}\rho \)

Substitute the values in the above expression, and we get,

\(\begin{array}{c}B = {\left( {8.00\;{\rm{m}}} \right)^2}{\left( {400\;{\rm{Hz}}} \right)^2} \times 1300\;{\rm{kg/}}{{\rm{m}}^{\rm{3}}}\\ = 1.331 \times {10^{10}} \cdot \left( {1\;{{\rm{m}}^2} \times 1\;{\rm{H}}{{\rm{z}}^2} \times 1\;{\rm{kg/}}{{\rm{m}}^{\rm{3}}} \times \frac{{1\;{\rm{Pa}}}}{{1\;{\rm{kg}} \cdot {{\rm{s}}^{\rm{2}}}{\rm{/m}}}} \times \frac{{1\;{{\rm{s}}^{\rm{2}}}}}{{1\;{\rm{H}}{{\rm{z}}^2}}}} \right)\\ = 1.331 \times {10^{10}} \cdot \left( {1\;{\rm{Pa}}} \right)\\ = 1.331 \times {10^{10}}\;{\rm{Pa}}\end{array}\)

Thus, the bulk modulus of liquid is \(1.331 \times {10^{10}}\;{\rm{Pa}}\) .

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

For sound waves in air with frequency 1000 Hz, a displacement amplitude of 1.2 x 108 m produces a pressure amplitude of 3.0 脳 10-虏 Pa. Water at 20掳C has a bulk modulus of 2.2 x 10鈦� Pa, and the speed of sound in water at this temperature is 1480 m/s. For 1000-Hz sound waves in 20掳C water, what displacement amplitude is produced if the pressure amplitude is 3.0 x 102 Pa? Explain why your answer is much less than 1.2 x 10-8 m.

What is the purpose of the frets on a guitar? In terms of the frequency of the vibration of the strings, explain their use.

You live on a busy street, but as a music lover, you want to reduce the traffic noise. (a) If you install special sound reflecting windows that reduce the sound intensity level (in dB) by 30 dB, by what fraction have you lowered the sound intensity(W/m2)?(b) If, instead, you reduce the intensity by half, what change (in dB) do you make in the sound intensity level?

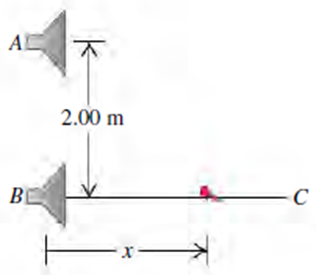

Two identical loudspeakers are located at points A and B, 2.00 m apart. The loudspeakers are driven by the same amplifier and produce sound waves with a frequency of 784 Hz. Take the speed of sound in air to be 344 m/s. A small microphone is moved out from point Balong a line perpendicular to the line connecting Aand B(line BC in Fig. P16.65). (a) At what distances from Bwill there be destructiveinterference? (b) At what distances from Bwill there be constructiveinterference? (c) If the frequency is made low enough, there will be no positions along the line BCat which destructive interference occurs. How low must the frequency be for this to be the case?

In most modern wind instruments the pitch is changed by

using keys or valves to change the length of the vibrating air column.

The bugle, however, has no valves or keys, yet it can play many notes. How might this be possible? Are there restrictions on what notes a bugle can play?
