Chapter 3: Q8E (page 574)

A constant-volume gas thermometer registers an absolute pressure corresponding to 325 mm of mercury when in contact with water at the triple point. What pressure does it read when in contact with water at the normal boiling point?

Short Answer

Expert verified

The pressure reading when there is contact with water at normal boiling point is 444mm of mercury.

Step by step solution

01

Step 1: Identification of given data

Absolute pressure corresponding to 325 mm of mercury

02

Concept of Triple point.

Triple point is a singular point designating pressure and temperature at which the three phases. i.e. solid, liquid and gas of any pure substance can exist at the same time while in equilibrium.

03

Determination of the pressure at the temperature where CO2 solidifies.

The volume in this case is constant. Therefore, the relation connecting the temperature and pressure is,

Solve for P,

P=PtripleTTtripleFormercury,Ptriple=325mm,Ttriple=273.16kT=100掳C+273.16K=373.16K

Substitute all the values in the above equation,

P=(325.0mm)375.16K273.16K=444mmofmercury

Thus, the pressure reading when there is contact with water at normal boiling point is 444 mm of mercury.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

For a gas of nitrogen moleculesN2 , what must the temperature be if 94.7% of all the molecules have speeds less than (a) 1500 m/s (b) 1000 m/s (c) 500 m/s ? Use Table 18.2. The molar mass of N2 is 28 g/mol.

(a) Compute the specific heat at constant volume of nitrogen (N2) gas, and compare it with the specific heat of liquid water. The molar mass of N2 is 28.0 g/mol. (b) you warm 1.00 kg of water at a constant volume of 1.00 L from 20.0掳C to 30.0掳C in a kettle. For the same amount of heat, how many kilograms of 20.0掳C air would you be able to warm to 30.0掳C? What volume (in litters) would this air occupy at 20.0掳C and a pressure of 1.00 atm? Make the simplifying assumption that air is 100% N2

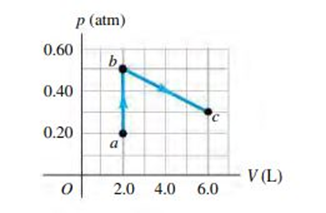

The process abc shown in the pV-diagram in Fig. E19.11 involves 0.0175 mol of an ideal gas. (a) What was the lowest temperature the gas reached in this process? Where did it occur? (b) How much work was done by or on the gas from a to b? From b to c? (c) If 215 J of heat was put into the gas during abc, how many of those joules went into internal energy?

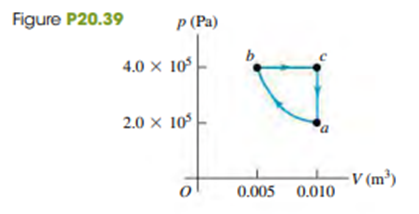

You build a heat engine that takes 1.00 mol of an ideal diatomic gas through the cycle shown in Fig. P20.39. (a) Show that process ab is an isothermal compression. (b) During which process(es) of the cycle is heat absorbed by the gas? During which process(es) is heat rejected? How do you know? Calculate (c) the temperature at points a, b, and c; (d) the net heat exchanged with the surroundings and net work done by the engine in one cycle; (e) the thermal efficiency of the engine.

A blacksmith cools a 1.20 kg chunk of iron, initially at 650掳C,by trickling 15掳Cwater over it. All of the water boils away, and the iron ends up at 120掳C. How much water did the blacksmith trickle over the iron?
