(a) Where is the near point of an eye for which a contact lens with a power of +2.75 diopters is prescribed? (b) Where is the far point of an eye for which a contact lens with a power of -1.30 diopters is prescribed for distant vision?

Short Answer

Expert verified

a) the near point of the eyes without lens is 80 cm .

b) the far point of the eyes without lens is 77cm .

Step by step solution

01

Basic definition

Thin Lens formula:

1u+1v=1f

Here,

u = Object distance from lens

v = Image distance from lens

f = Focal length of the lens

Sign Convention:

  1. Object Distance (u): (+) in front of lens; (-) in the back of lens
  2. Image Distance (v): (-) in front of lens; (+) in the back of lens
  3. Focal Length (f): (+) for convergent (convex) lens; (-) for divergent (concave) lens

Power of a lens is defined as the reciprocal of its focal length. Thus, converging or convex lens have positive powers and diverging or concave lens have negative powers.

02

Near point of the eye

Focal length of lens,

⇒Power,p=1focallength,f⇒f=1P=100+2.75cm=36.36cm

Object distance, u = +25.0 cm (Near point of eyes with lens)

By using lens formula

⇒1u+1v=1f⇒1+25+1v=136.36⇒1v=1+36.36-1+25⇒1v1=25-36.3636.36*25⇒v=-80cm

Therefore, the near point of the eyes without lens is 80 cm

03

Far point of the eye

Focal length of lens,

⇒Power,P=1Focallength,f⇒f=1P=100-1.30cm=-77cm

Object distance,u=∞ (Far point of eyes with lens)

By using lens formula

⇒1u+1v=1f⇒1∞+1v=1-77⇒1v=1-77-1∞⇒v=-77cm

Therefore, the far point of the eyes without lens is 77cm .

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

After a laser beam passes through two thin parallel slits, the first completely dark fringes occur at±19.0° with theoriginal direction of the beam, as viewed on a screen far from the slits. (a) What is the ratio of the distance between the slits to the wavelength of the light illuminating the slits? (b) What is the smallest angle, relative to the original direction of the laser beam, at which the intensity of the light is 1/10 the maximum intensity on the screen?

34.19 A person swimming 0.80cm below the surface of the water in a swimming pool looks at the diving board that is directly overhead and sees the image of the board that is formed by refraction at the surface of the water. This image is a height of 5.20 m above the swimmer. What is the actual height of the diving board above the surface of the water?

You are asked to design a space telescope for earth orbit. When Jupiter is 5.93×108kmaway (its closest approach to the earth), the telescope is to resolve, by Rayleigh’s criterion, features on Jupiter that are 250 km apart. What minimum-diameter mirror is required? Assume a wavelength of 500 nm.

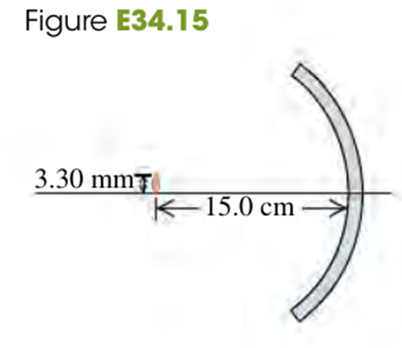

34.15 The thin glass shell shown in Fig. E34.15 has a spherical shape with a radius of curvature of 12cm, and both of its surfaces can act as mirrors. A seed high is placed 15.0cmfrom the center of the mirror along the optic axis, as shown in the figure. (a) Calculate the location and height of the image of this seed. (b) Suppose now that the shell is reversed. Find the location and height of the seed’s image.
