Chapter 5: Q4DQ (page 1104)

A student claimed that, because of atmospheric refraction (see Discussion Question Q33.2), the sun can be seen after it has set and that the day is therefore longer than it would be if the earth had no atmosphere. First, what does she mean by saying that the sun can be seen after it has set? Second, comment on the validity of her conclusion.

Short Answer

Expert verified

Refraction causes Sun to appear even after it sets. The conclusion is valid.

Step by step solution

01

Definition of Refraction

Refraction is the redirection of a wave as it passes from one medium to another.

02

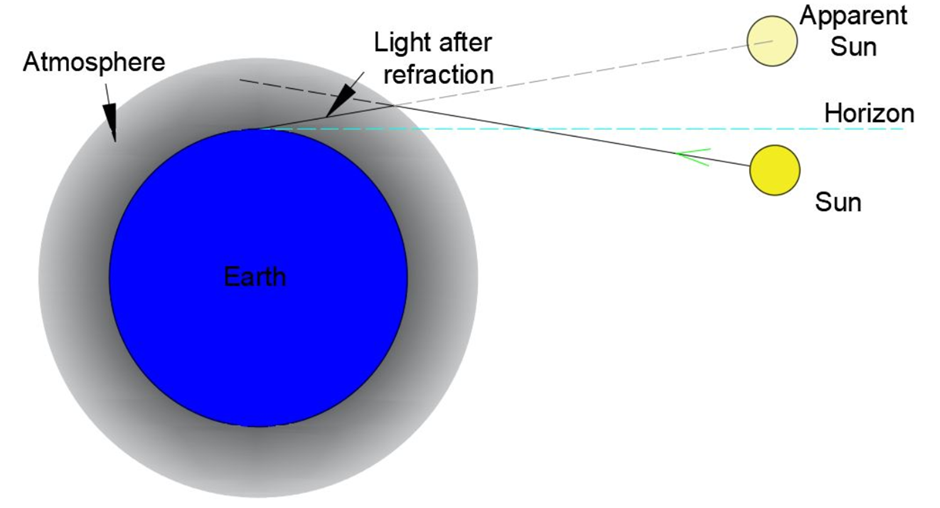

Pictorial representation of apparent sun after it set

The student meant that even after Sun is set below the Horizon. The sun can be seen due to the refraction of the light through the denser medium of atmosphere.

The student鈥檚 argument is true if there is no atmosphere, the apparent Sun cannot be seen due to the refraction of light. If the true position of the Sun is seen, then the day would not be apparently longer.

Thus, Refraction causes Sun to appear even after it sets, and the Conclusion is valid.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

You can鈥檛 see clearly underwater with the naked eye, but you can if you wear a face mask or goggles (with air between your eyes and the mask or goggles). Why is there a difference? Could you instead wear eyeglasses (with water between your eyes and the eyeglasses) in order to see underwater? If so, should the lenses be converging or diverging? Explain.

The VLBA (Very Long Baseline Array) uses a number of individual radio telescopes to make one unit having an equivalent diameter of about 8000 km. When this radio telescope is focusing radio waves of wavelength 2.0 cm, what would have to be the diameter of the mirror of a visible-light telescope focusing the light of wavelength 550 nm so that the visible-light telescope has the same resolution as the radio telescope?

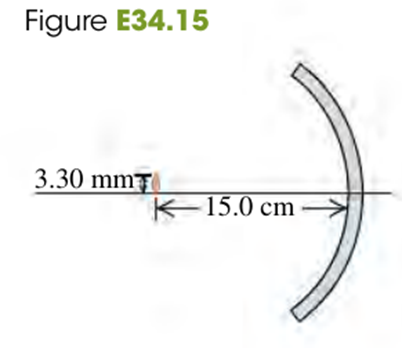

34.15 The thin glass shell shown in Fig. E34.15 has a spherical shape with a radius of curvature of 12cm, and both of its surfaces can act as mirrors. A seed high is placed 15.0cmfrom the center of the mirror along the optic axis, as shown in the figure. (a) Calculate the location and height of the image of this seed. (b) Suppose now that the shell is reversed. Find the location and height of the seed鈥檚 image.

Monochromatic light with wavelength 490 nm passes through a circular aperture, and a diffraction pattern is observed on a screen that is 1.20 m from the aperture. If the distance on the screen between the first and second dark rings is 1.65 mm, what is the diameter of the aperture?

A converging meniscus lens (see Fig.) with a refractive index of 1.52 has spherical surfaces whose radii are 7.00 cm and 4.00 cm. What is the position of the image if an object is placed 24.0 cm to the left of the lens? What is the magnification?
