A researcher measures the thickness of a layer of benzene 1n= 1.502 floating on water by shining monochromatic light onto the film and varying the wavelength of the light. She finds that light of wavelength 575 nm is reflected most strongly from the film. What does she calculate for the minimum thickness of the film?

Short Answer

Expert verified

95.8 nm is the minimum thickness of the film.

Step by step solution

01

 Given

nbenzene=nfilm=1.50,λair=575nm

02

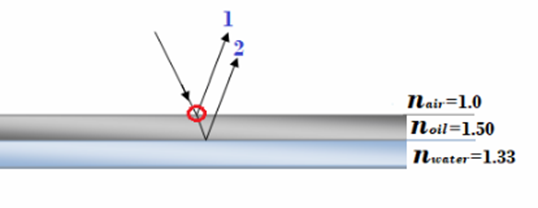

Ray diagram.

03

 Concept.

The first reflected ray, as you see in the figure above, experience a phase change since the index f refraction of the oil is greater than the index of refraction of the air.

(The red circle indicates a phase change)

But the second ray reflects without any phase change since the index of refraction water is less than the index of refraction of the oil

This means that we have two reflected rays with one phase change.

So, the thickness of the film, which gives a constructive interference at the wavelength of 575 nm, is given by

2t=m+12λfilm (1)

We know, from Snell's law, that

n1λ1=n2λ2

So,

nfilmλfilm=nairλair

whereasnair= 1.0 Solving forλfilmand

λfilm=nairnfilm

Substitute into (1)

2t=m+12λairλfilm

04

Calculation.

Finding the minimum thickness, which occurs when m = 0,

2t=0+12λairnfilm2t=λair2nfilm

Hence,

t=λair4nfilm

Substitute the given

t=575nm4×1.50t=95.8nm
