Chapter 1: Q8E (page 124)

You walk into an elevator, step onto a scale, and push the 鈥渦p鈥� button. You recall that your normal weight is 625 N. Draw a free-body diagram.

(a) When the elevator has an upward acceleration of magnitude2.5m/S2, what does the scale read?

(b) If you hold a 3.85 kg package by a light vertical string, what will be the tension in this string when the elevator accelerates as in part (a)?

Short Answer

Expert verified

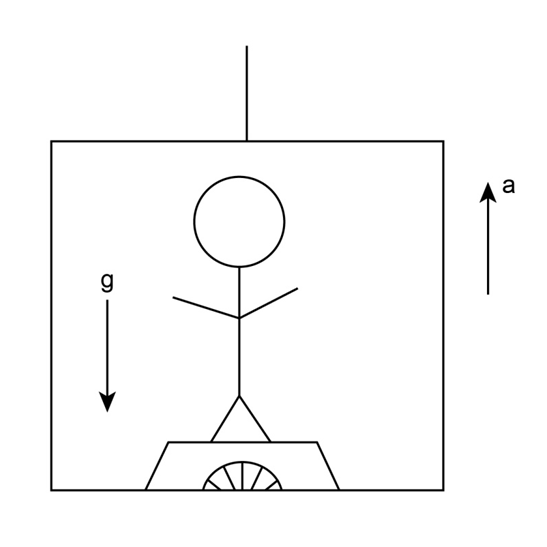

The free body diagram is as follows:

(a) When the elevator has an upward acceleration of magnitude 2.5m/s2, the scale reads 80.05kg.

(b) If a3.85 kg package is held by a light vertical string inside the accelerating elevator, the tension in this string will be 47.36N.

Step by step solution

01

Given data

The normal weight of the person stepping in the elevator is

W=625N

The acceleration of the elevator is

a=2.5m/s2

The mass of the package is

m=3.85kg

02

Net weight inside an elevator

The weight of a body of mass inside an elevator moving up with an acceleration a is

W=mg+a.....1

Here, g is the acceleration due to gravity.

03

Weight of the person

The mass of the person is

M=Wg=625N9.8m/s2=63.78kg

From equation (1), the weight inside the elevator is

W'=Mg+a=63.78kg脳9.8m/s2+2.5m/s2=784.5N

The scale will read

M'=W'g=784.5N9.8m/s2=80.05kg

The scale reads is 80.05 Kg

04

Tension in the string

Tension in the string is equal to the weight of the object.

From equation (1), the weight of the object inside the elevator is

W=mg+a=3.85kg脳9.8m/s2+2.5m/s2=47.36N

Thus, the tension is 47.36N

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A Tennis Serve. In the fastest measured tennis serve, the ball left the racquet at 73.14m/s. A served tennis ball is typically in contact with the racquet for30.0and starts from rest. Assume constant acceleration. (a) What was the ball鈥檚 acceleration during this serve? (b) How far did the ball travel during the serve?

A cube of oak wood with very smooth faces normally floats in water. Suppose you submerge it completely and press one face flat against the bottom of a tank so that no water is under that face. Will the block float to the surface? Is there a buoyant force on it? Explain.

Mass Mis distributed uniformly over a disk of radius a. Find the

gravitational force (magnitude and direction) between this disk-shaped mass

and a particle with mass mlocated a distance xabove the centre of the disk

(Fig. P13.81). Does your result reduce to the correct expression as xbecomes

very large? (Hint:Divide the disk into infinitesimally thin concentric rings, use

the expression derived in Exercise 13.35 for the gravitational force due to each

ring, and integrate to find the total force.)

Question: The purity of gold can be tested by weighing it in air and in water. How? Do you think you could get away with making a fake gold brick by gold-plating some cheaper material?

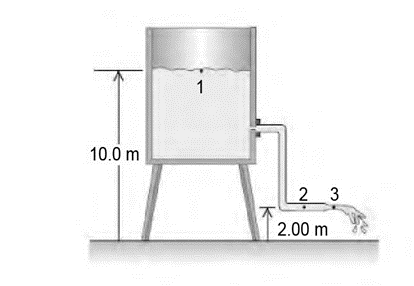

Water flows steadily from an open tank as in Fig. P12.81. The elevation of point 1 is 10.0 m, and the elevation of points 2 and 3 is 2.00 m. The cross-sectional area at point 2 is 0.0480 m2; at point 3 it is 0.0160 m2. The area of the tank is very large compared with the cross-sectional area of the pipe. Assuming that Bernoulli鈥檚 equation applies, compute (a) the discharge rate in cubic meters per second and (b) the gauge pressure at point 2.
