Chapter 1: Q43P (page 360)

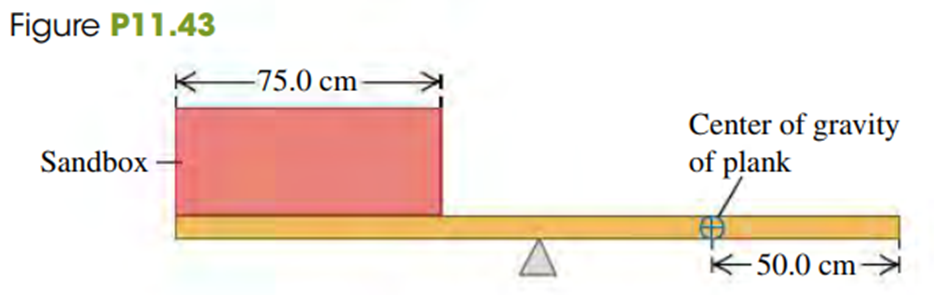

A box of negligible mass rests at the left end of a 2.00-m, 25.0-kg plank. The width of the box is 75.0 cm, and sand is to be distributed uniformly throughout it. The center of gravity of the nonuniform plank is 50.0 cm from the right end. What mass of sand should be put into the box so that the plank balances horizontally on a fulcrum placed just below its midpoint?

Short Answer

Expert verified

The mass of sand is 20 kg.

Step by step solution

01

The given data

Given that a box of negligible mass rests at the left end of a 2.00-m, 25.0-kg plank.

The width of the box is 75.0 cm, and sand is to be distributed uniformly throughout it.

The center of gravity of the nonuniform plank is 50.0 cm from the right end.

02

Formula used

Center of mass, x=m1x1+m2x2m1+m2where

m1and m2are masses of the system and x1,andx2are positions of masses.

03

Find the mass of the sand

Let the fulcrum be the origin.

Let m1=25kg

So x1=0.5m

Let m2be mass of the sand

So x2=-0.625m

Since the center of gravity is in the middle of the box

Therefore x = 0 m

This implies x=m1x1+m2x2m1+m2= 0 m

Thus

(25kg)(0.5m)+m2(鈭�0.625m)m1+m2=0mm2=12.5m鈰�kg0.625mm2=20kg

Hence, the mass of sand required is 20 kg.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

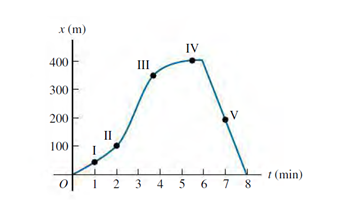

A physics professor leaves her house and walks along the sidewalk toward campus. After 5 min, it starts to rain, and she returns home. Her distance from her house as a function of time is shown in Fig. E2.10 At which of the labeled points is her velocity (a) zero? (b) constant and positive? (c) constant and negative? (d) increasing in magnitude? (e) decreasing in magnitude?

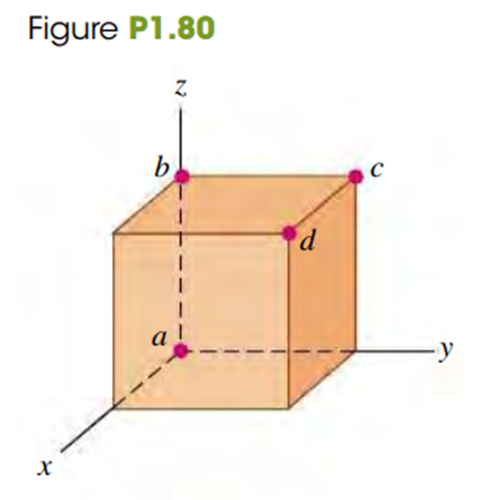

A cube is placed so that one corner is at the origin and three edges are along the x-, y-, and z-axes of a coordinate system (Fig. P1.80). Use vectors to compute (a) the angle between the edge along the z-axis (line ab) and the diagonal from the origin to the opposite corner (line ad), and (b) the angle between line ac (the diagonal of a face) and line ad.

A cylindrical bucket, open at the top, is 25.0 cm high and 10.0 cm in diameter. A circular hole with a cross-sectional area 1.50 cm2 is cut in the center of the bottom of the bucket. Water flows into the bucket from a tube above it at the rate of 2.40 x 10-4m3/s. How high will the water in the bucket rise?

On a training flight, a student pilot flies from Lincoln, Nebraska, to Clarinda, Iowa, next to St. Joseph, Missouri, and then to Manhattan, Kansas

(Fig. P1.66). The directions are shown relative to north: 0掳is north, 90掳is east, 180掳is south, and 270掳is west. Use the method of components to find (a) the distance she has to fly from Manhattan to get back to Lincoln, and (b) the direction (relative to north) she must fly to get there. Illustrate your solutions with a vector diagram.

You normally drive on the freeway between San Diego and Los Angeles at an average speed of 105 km/h (65 mi/h), and the trip takes 1 h and 50 min. On a Friday afternoon, however, heavy traffic slows you down and you drive the same distance at an average speed of only 70 km/h (43 mi/h). How much longer does the trip take?
