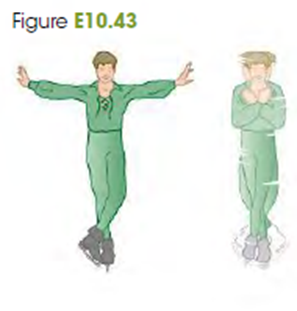

The Spining. Figure Skater. The outstretched hands and arms of a figure skater preparing for a spin can be considered a slender rod pivoting about an axis through its center (fig.E10.43). When the skatere'g hands and arms are brought in wrapped around his body to execute the spin, the hands and arms can be considered a thin-walled, hollow cylinder. His hands and arms have a combined mass of 8.0kg. When outstretched, they span 1.8m, when wrapped, they form a cylinder of radius 25cm. The moment of inertia about the rotation axis of the remainder of his body is constant and equal to 0.40kgm2. If his original angular speed is 0.40rev/s, what is the final angular speed?

Short Answer

Expert verified

The angular speed after the hands are wrapped is 1.14reV/s.

Step by step solution

01

Given in the question

Original angular speed is Ó¬1=0.40rev/s.

Final angular speed is Ó¬2.

Mass of arms is m=8kg

Radius of cylinder is R=25cm.

Length of arms outstretched is L=1.8m.

02

Conservation of angular momentum.

Apply the law of conservation of angular momentum to a system whose moment of inertia changes gives:

IjÓ¬j=IfÓ¬f=constant

03

Moment of inertia with arms outstretched.

The total moment of inertia with arms outstretched is solved as:

I1=Ibody+Iarms=0.40kgm2+112mL2=0.40kgm2+112×8kg×(1.8m)2=2.56kgm2

Hence, the total moment of inertia when the arms are outstretched is 2.56kgm2.

04

Moment of inertia with arms wrapped around the body.

The total moment of inertia with arms wrapped around the body is solved as:

I2=Ibody+Iams=0.40kgm2+mR2=0.40kgm2+8kg×(0.25m)2=0.9kgm2

Hence, the total moment of inertia when the arms are wrapped around is 0.9kgm2.

05

Use conservation of angular momentum.

Use the conservation of angular momentum to obtain angular speed:

I1Ӭ1=I2Ӭ22.56kgm2×0.40rad/s=0.9kgm2×Ӭ2Ӭ2=2.56kgm2×0.40rad/s0.9Ӭ2=1.14rad/s


Hence, the final angular speed is 1.14rev/s
