A gyroscope is processing about a vertical axis. What happens to the precession angular speed if the following changes are made, with all other variables remaining the same?

(a) The angular speed of the spinning flywheel is doubled;

(b) The total weight is doubled;

(c) The moment of inertia about the axis of the spinning wheel is doubled;

(d) The distance from the pivot to the center of gravity is doubled.

(e) What happens if all the variables in parts (a) through (d) are doubled?

In each case justify your answer.

Short Answer

Expert verified

(a) The precession angular speed will be cut in half.

(b) The precession angular speed doubles.

(c) The precession angular speed will be cut in half.

(d) The precession angular speed doubles.

(e) The precession angular speed stays the same.

Step by step solution

01

Formula used

Precession angular speed is

Ω=wrlwwhere,

w is the weight of the flywheel

r is the distance from the pivot to the center of gravity

I is moment of inertia and

Ó¬angular speed.

02

(a)Step 2: Angular speed is doubled

From the formula, it is clear that precession angular speedΩis inversely proportional to the angular speed Ӭ.

So if Ӭis doubled, Ωwill be halved.

Hence, precession angular speedΩwill be cut in half.

03

(b)Step 3: total weight is doubled

From the formula, it is clear that precession angular speed Ω is directly proportional to weight w.

So if w is doubledΩ, will also be doubled l.

Hence, precession angular speedΩwill be doubled.

04

(c)Step 4: Moment of inertia is doubled

From the formula, it is clear that precession angular speed Ω is inversely proportional to the moment of inertia I.

So if I is doubled Ω, will be halved.

Hence, precession angular speedΩ will be cut in half.

05

(d)Step 5: Distance from the pivot to the centre of gravity is doubled

From the formula, it is clear that precession angular speedΩ is directly proportional to the distance from the pivot to the centre of gravity r.

So if r is doubled,Ω will also be doubled.

Hence, precession angular speedΩ will be doubled.

06

(e)Step 6: All variables are doubled

If all four factors are doubled, the total effect will be balanced and precession angular speedΩ remains the same.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A Fast Pitch. The fastest measured pitched baseball left the pitcher’s hand at a speed of 45.0m/s. If the pitcher was in contact with the ball over a distance of1.50mand produced constant acceleration, (a) what acceleration did he give the ball, and (b) how much time did it take him to pitch it?

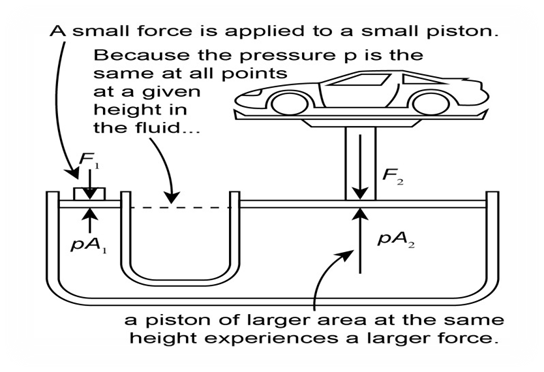

For the hydraulic lift shown in Fig. 12.7, what must be the ratio of the diameter of the vessel at the car to the diameter of the vessel where the force F1 is applied so that a 1520-kg car can be lifted with a force F1 of just 125 N?
