A closed container is partially filled with water. Initially, the air above the water is at atmospheric pressure (1.01×105Pa)and the gauge pressure at the bottom of the water is 2500 Pa. Then additional air is pumped in, increasing the pressure of the air above the water by 1500 Pa. (a) What is the gauge pressure at the bottom of the water? (b) By how much must the water level in the container be reduced, by drawing some water out through a valve at the bottom of the container, to return the gauge pressure at the bottom of the water to its original value of 2500 Pa? The pressure of the air above the water is maintained at 1500 Pa above atmospheric pressure.

Short Answer

Expert verified
  1. The gauge pressure will be 400 Pa.
  2. The water level of the container must be reduced by 0.153 m.

Step by step solution

01

Identification of given information

The given data can be listed as,

  • The pressure of the air above the water is, Pa=1.01×105Pa.
  • The gauge pressure at the bottom of the water is,Pg=2500Pa
  • An increase in pressure when air is pumped out is, ∆P=1500Pa.
  • The original pressure is, Pg=p=2500Pa1N/m21pa=2500N/m2.
02

Significance of gauge pressure

Pressures are often described in terms of heights. The pressure has to be greater than the atmosphere to support the object, so the significant quantity is the difference between the inside and outside pressures.

03

(a) Evaluation of gauge pressure

The difference betweenthe pressure of the surface of the water and the bottom is due to the weight of the water—2500 Pa. When the pressure increases above the surface, increased surface pressure istransmitted to the fluid.

So, the total difference in atmospheric pressure is given as,

Pg1=Pg+∆P

Substitute all the values above equation.

Pg1=2500Pa+1500Pa=4000Pa

Thus, the gauge pressure will be 4000 Pa.

04

(b) Calculation of the fall in water level

The pressure due to water is 2500 Pa.

So the height of the water level is given by,

h=ppg

Here, pis the density whose value is 1000kg/m2, p is the pressure and gis the acceleration due to gravity whose value is 9.8m/s2.

Substitute all the values above equation.

role="math" localid="1656488481249" h=2500N/m21000kg/m2(9.8m/s2)

Thus, the water level at2500 Pa is at 0.255m

The pressure P2due to water will need to be decreased by 1000 Pa or 1000N/m2to make the gauge pressure of the bottom constant. So the height at this pressure will be,

h2=P2pg

Substitute all the values above equation.

h2=1000N/m21000kg/m2(9.8m/s2)=0.102m

Therefore, the water level of the container will fall by,

∆h=h-h2

Substitute all the values above equation.

∆h=0.255m-0.102m=0.153m

Thus, the water level of the container must be reduced by 0.153m.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A car and a truck start from rest at the same instant, with the car initially at some distance behind the truck. The truck has a constant acceleration of20m/s2, and the car has an acceleration of3.40m/s2. The car overtakes the truck after the truck has moved60.0m. (a) How much time does it take the car to overtake the truck? (b) How far was the car behind the truck initially? (c) What is the speed of each when they are abreast? (d) On a single graph, sketch the position of each vehicle as a function of time. Takex=0at the initial location of the truck.

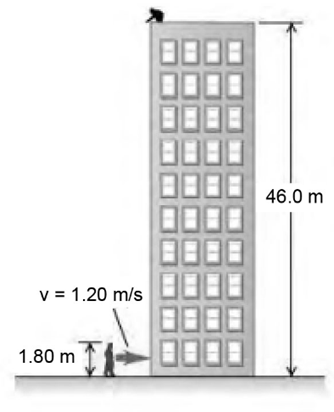

You are on the roof of the physics building, 46.0 mabove the ground (Fig. P2.70). Your physics professor, who is1.80 mtall, is walking alongside the building at a constant speed of1.20 m/s. If you wish to drop an egg on your professor’s head, where should the professor be when you release the egg? Assume that the egg is in free fall.
