Consider electromagnetic waves propagating in air. (a) Determine the frequency of a wave with a wavelength of (i) 5.0 km, (ii) 5.0 mm, (iii) 5.0 nm , (b) What is the wavelength (in meters and nanometers) of (i) gamma rays of frequency6.50×1021Hz and (ii) an AM station radio wave of frequency ?

Short Answer

Expert verified

a) The frequency of a wave with a wavelength of

i. Forλ=5.0Km is 6×104Hz.

ii. Forλ=5.0μm is 6×1013Hz.

iii. Forλ=5.0nm is 6×1016Hz.

b) The wavelength of

i. For gamma rays of frequency 6.50×1021Hzis 4.62×10-14m.

ii. For an AM station radio wave of frequency 590 KHz is 508 m

Step by step solution

01

Step 1: Define frequency and write formulas.

The number of waves that moves a fixed point in unit time is known as frequency.

f=1T

Where,T =Time period in

The frequency, wavelength, and speed of light of any wave are related by the wavelength-frequency relationship.

The wavelength-frequency relationship is:

c=λf⇒f=cλ

Where,c is the speed of light which is equal to 3×108m/s,λ is the wavelength andf is the frequency.

The wavelength is inversely proportional to the frequency.

λ=cfor vf

Where, v is velocity of wave in m/s.

02

Determine the frequency of wave.

The wavelength-frequency relationship is:

c=λf⇒f=cλ

Forrole="math" localid="1664348819222" λ=5.0Km

f=3×1085×103=6×104Hz

Forλ=5.0μm

f=3×1085×10-6=6×1013Hz

Forλ=5.0nm

f=3×1085×10-9=6×1016Hz

Hence, frequency of a wave with a wavelength of

i . Forλ=5.0Km is 6×104Hz.

ii . Forλ=5.0μm is 6×1013Hz.

iii . Forλ=5.0nm is 6×1016Hz.

03

Determine the wavelength of wave.

The wavelength is inversely proportional to the frequency.

λ=cf

For gamma rays of frequency 6.50×1021Hz:

λ=3×1086.50×1021=4.62×10-14m

For AM station radio wave of frequency 590 KHz:

λ=3×108590×103=508m

Hence, wavelength of

i. For gamma rays of frequency 6.50×1021Hzis 4.62×10-14m.

ii. For an AM station radio wave of frequency 590 KHz is 508 m

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

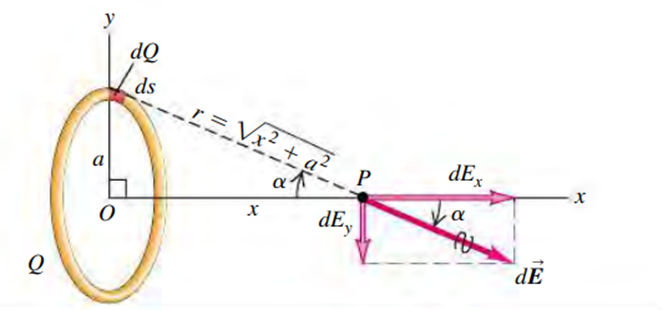

Question:A ring-shaped conductor with radius a = 2.50 cm has a total positive charge Q = +0.125 nC uniformly distributed around it (see Fig. 21.23). The center of the ring is at the origin of coordinates O. (a) What is the electric field (magnitude and direction) at point P, which is on the x-axis at x = 40.0 cm? (b) A point charge q = -2.50 μC is placed at P. What are the magnitude and direction of the force exerted by the charge q on the ring?

Cyclotrons are widely used in nuclear medicine for producing short-lived radioactive isotopes. These cyclotrons typically accelerate H-(the hydride ion, which has one proton and two electrons) to an energy of 5MeVto20MeV.This ion has a mass very close to that of a proton because the electron mass is negligible about 12000of the proton’s mass. A typical magnetic field in such cyclotrons is 1.9T..(a) What is the speed of a 5.0-MeVH-? (b) If the H-has energy 5.0MeVandB=1.9T what is the radius of this ion’s circulator orbit?

An 18-gauge copper wire (diameter 1.02 mm) carries a current

with a current density of 3.2×106Am2. The density of free electrons for

copper is8.5×1028electrons per cubic meter. Calculate (a) the current in

the wire and (b) the drift velocity of electrons in the wire.

Two coils are wound around the same cylindrical form. When the current in the first coil is decreasing at a rate of , the induced emf in the second coil has magnitude 1.65×10-3V. (a) What is the mutual inductance of the pair of coils? (b) If the second coil has 25 turns, what is the flux through each turn when the current in the first coil equals 1.20A? (c) If the current in the second coil increases at a rate of 0.360A/s, what is the magnitude of the induced emf in the first coil?

A 1500-W electric heater is plugged into the outlet of a 120-V circuit that has a 20-A circuit breaker. You plug an electric hair dryer into the same outlet. The hair dryer has power settings of 600 W, 900 W, 1200 W, and 1500 W. You start with the hair dryer on the 600-W setting and increase the power setting until the circuit breaker trips. What power setting caused the breaker to trip?
