Chapter 4: Q51E (page 876)

A 1500-W electric heater is plugged into the outlet of a 120-V circuit that has a 20-A circuit breaker. You plug an electric hair dryer into the same outlet. The hair dryer has power settings of 600 W, 900 W, 1200 W, and 1500 W. You start with the hair dryer on the 600-W setting and increase the power setting until the circuit breaker trips. What power setting caused the breaker to trip?

Short Answer

Expert verified

The power setting that caused the breaker to trip is 900 W

Step by step solution

01

Definition of power

Amount of energy transferred per unit time.

Given Data:

Heater with power P =1500 W

Outlet voltage V =120 V

Current I =20 A

The dryer has power settings of 600 W,900 W,1200 W, and 1500 W.

02

Step 2:

The relation between power and current is,

P=VI

Substituting the values in the above expression, we get,

I=PVI=1500W120VI=12.5A

The total current allowed is 20 A

Current through dryer must be less than,

20 A-12.5 A = 7.5 A

The power dissipated is,

P = VI = (120V) (7.5A) = 900 W

Thus, the power setting that caused the breaker to tip is 900 W.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Question: A +2.00nC point charge is at the origin, and a second -5.00nC point charge is on the x-axis at x = 0.800 m. (a) Find the electric field (magnitude and direction) at each of the following points on the x-axis: (i) x = 0.200 m; (ii) x = 1.20 m; (iii) x = -0.200 m. (b) Find the net electric force that the two charges would exert on an electron placed at each point in part (a).

A circular area with a radius of6.50cmlies in the xy-plane. What is the magnitude of the magnetic flux through this circle due to a uniform magnetic fieldlocalid="1655727900569" B鈫�=0.230T(a) in the direction of +z direction; (b) at an angle of53.1掳from the direction; (c) in the direction?

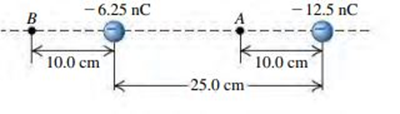

Two-point charges are separated by 25.0 cm (Fig. E21.43). Find the net electric field these charges produce at (a) point A and (b) point B. (c) What would be the magnitude and direction of the electric force this combination of charges would produce on a proton at A?

In Europe the standard voltage in homes is 220 V instead of the 120 used in the United States. Therefore a 鈥�100-W鈥� European bulb would be intended for use with a 220-V potential difference (see Problem 25.36). (a) If you bring a 鈥�100-W鈥� European bulb home to the United States, what should be its U.S. power rating? (b) How much current will the 100-W European bulb draw in normal use in the United States?

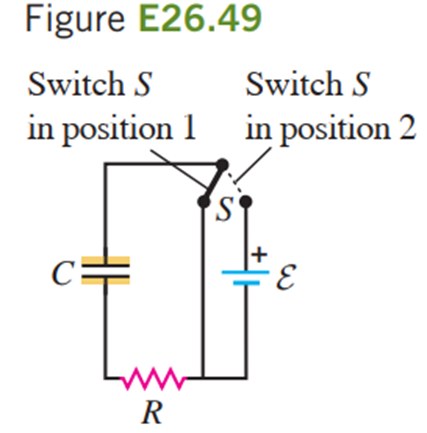

Question: In the circuit shown in Fig. E26.49, C = 5.90 mF, 詯 = 28.0 V, and the emf has negligible resistance. Initially, the capacitor is uncharged and the switch S is in position 1. The switch is then moved to position 2 so that the capacitor begins to charge. (a) What will be the charge on the capacitor a long time after S is moved to position 2? (b) After S has been in position 2 for 3.00 ms, the charge on the capacitor is measured to be 110 mC What is the value of the resistance R? (c) How long after S is moved to position 2 will the charge on the capacitor be equal to 99.0% of the final value found in part (a)?
