Two particles having charges q1 = 0.500 nC and q2 = 8.00 nC are separated by a distance of 1.20 m. At what point along the line connecting the two charges is the total electric field due to the two charges equal to zero?

Short Answer

Expert verified

The point at which the total electric field between two charges is equal to zero is at distance 0.24m from q1.

Step by step solution

01

Electric fields have the same magnitude but in opposite directions cancel their effect.

We are given two particles having charges Q1 +0.500 nC and q2 = 8.00 nC are separated by a distance of 1.20 m.

Each charge has an electric field, and as both of them have a positive charge, the electric field from each charge is away from the charge. Also, the total electric field will be zero when the two electric fields have the same magnitude but in opposite direction.

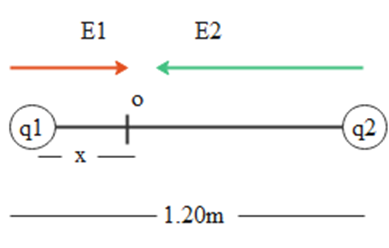

As shown in the figure below, the region between the two charges has the condition that the two electric fields

are in the opposite direction, and let us consider that point o is the point at which the total electric field is zero, where the distance between qi and o is x while between q2and o is (1.20 m – x).

02

Calculation of the point  at which the total electric field between two charges is equal to zero

Now calculate the value of x to determine the required, where the two electric fields at the point have the same magnitude

E1=E2kq1x2=k|q2|(1.20−x)2q1x2=|q2|(1.20−x)2(1.20−x)x=q2q11.20x=q2q1 ……… (1)

Now substitute the given values in equation(1)

x=1.208.00nC0.500nC+1=0.24m

Hence the point at which the total electric field between two charges is equal to zero is at distance 0.24m from q1.
