In the circuit shown in Fig. P25.66, R is a variable resistor whose value ranges from 0to, and a and b are the terminals of a battery that has an emf =15.0V
and an internal resistance of 4.00. The ammeter and voltmeter are idealized meters. As R varies over its full range of values, what will be the largest and smallest readings of (a) the voltmeter and (b) the ammeter? (c) Sketch 99qualitative graphs of the readings of both meters as functions of R.

Short Answer

Expert verified

(a)Vmax=15V

(b)Imax=3.75A

(c)

Step by step solution

01

Determine the maximum voltmeter reading

According to Ohm鈥檚 law, the voltage is directly proportional to R. So, in this case, the maximum voltage will be obtained when the resistance is infinity. At infinity, there is no current flow in the circuit.

Vmax=-IrVmax=15V-0Vmax=15V

Therefore, the maximum voltage voltmeter reading is 15 V

02

Determine the maximum ammeter reading

According to Ohm鈥檚 Law, the current is inversely proportional to resistance. So, in this case, the maximum current will be obtained when the resistance is zero. At zero resistance, the flow of current in the circuit is maximum.

Imax=R+rImax=15V0+4Imax=3.75A

Therefore, the maximum ammeter reading is 3.75A

03

Determine the graph of the readings of both meters as functions of R

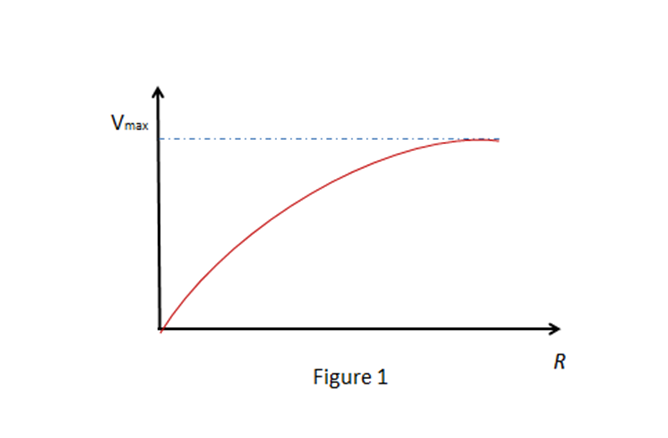

The below graph shows the curve between the voltage and the resistance where the voltage increases as the resistance increases to infinity.

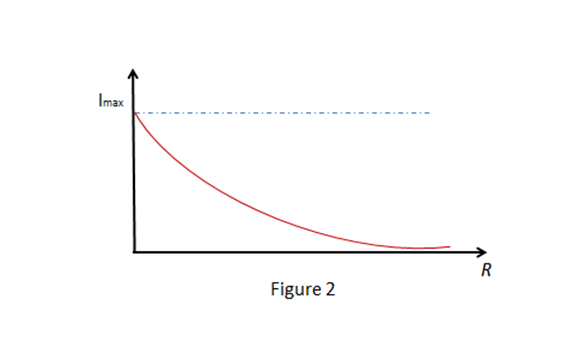

The below graph shows the curve between the current and the resistance where the current decreases as the resistance increases till the current reaches to zero.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

The circuit shown in Fig. E25.33 contains two batteries, each with an emf and an internal resistance, and two resistors. Find (a) the current in the circuit (magnitude and direction) and (b) the terminal voltage Vabof the 16.0-V battery.

Fig. E25.33

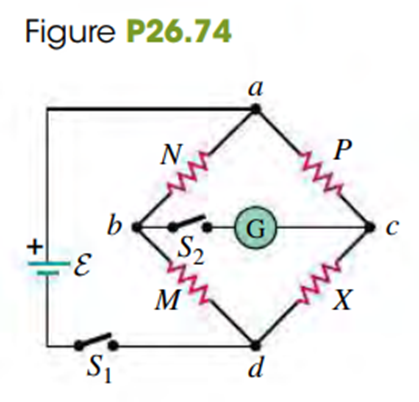

Question: The circuit shown in Fig. P26.74, called a Wheatstone Bridge, is used to determine the value of an unknown resistor X by comparison with three resistors M, N, and P whose resistances can be varied. For each setting, the resistance of each resistor is precisely known. With switches S1 and S2 closed, these resistors are varied until the current in the galvanometer G is zero; the bridge is then said to be balanced. (a) Show that under this condition the unknown resistance is given by X = MP/N. (This method permits very high precision in comparing resistors.) (b) If galvanometer G shows zero deflection when M = 850.0 鈩, N = 15.00 鈩, and P = 33.48 鈩, what is the unknown resistance X?

Questions: A conductor that carries a net charge has a hollow, empty cavity in its interior. Does the potential vary from point to point within the material of the conductor? What about within the cavity? How does the potential inside the cavity compare to the potential within the material of the conductor?

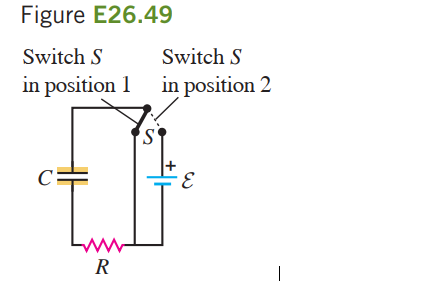

In the circuit shown in Fig. E26.49, C = 5.90 mF, 詯 = 28.0 V, and the emf has negligible resistance. Initially, the capacitor is uncharged and the switch S is in position 1. The switch is then moved to position 2 so that the capacitor begins to charge. (a) What will be the charge on the capacitor a long time after S is moved to position 2? (b) After S has been in position 2 for 3.00 ms, the charge on the capacitor is measured to be 110 mC What is the value of the resistance R? (c) How long after S is moved to position 2 will the charge on the capacitor be equal to 99.0% of the final value found in part (a)?
