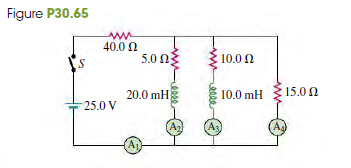

In the circuit shown in Fig. P30.65, switch S is closed at time t=0. (a) Find the reading of each meter just after S is closed. (b) What does each meter read long after S is closed?

Short Answer

Expert verified

(a) A1=A4=0.455AAnd A2=A3=0

(b)A1=0.58A,A2=0.32A,A3=0.16AandA4=0.107A

Step by step solution

01

Important Concepts

Ohm鈥檚 law states that the voltage across a conductor is directly proportional to the current flowing through it, provided all physical conditions and temperatures remain constant

V=IR

An inductor act as a wire of infinite resistance right after the circuit is closed while it acts as a normal conducting wire after a long time of circuit being closed

Same current flows through the ammeters connected in series.

Same voltage is dropped across voltmeters connected in parallel

02

Current just after switch is closed

Just after the switch is closed, the inductor has infinite resistance and hence the circuit branch is considered open at this point hence no current flows through the two ammetersA2and A3hence they read zero.

A2=A3=0

The same current flow through the ammeters A1andA4since they are in series.

Use ohm鈥檚 law to get the current through them

i=40+15=2540+15=0.455A

Hence the current through the ammeters is A1=A4=0.455AAndA2=A3=0

03

Current just after switch is for a long time

After a long time the current in the circuit is in steady-state, voltage across the inductors is zero. We get current in each ammeter by ohm鈥檚 law

A1=25V42.73=0.58AA2=1.6V5=0.32AA3=1.6V10=0.16AA4=1.6V15=0.107A

Hence the current through the ammeters is A1=0.58A,A2=0.32A,A3=0.16AandA4=0.107A,

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

In Europe the standard voltage in homes is 220 V instead of the 120 used in the United States. Therefore a 鈥100-W鈥 European bulb would be intended for use with a 220-V potential difference (see Problem 25.36). (a) If you bring a 鈥100-W鈥 European bulb home to the United States, what should be its U.S. power rating? (b) How much current will the 100-W European bulb draw in normal use in the United States?

The tightly wound toroidal solenoid is one of the few configurations for which it is easy to calculate self-inductance. What features of the toroidal solenoid give it this simplicity?

The heating element of an electric dryer is rated at 4.1 kW when connected to a 240-V line. (a) What is the current in the heating element? Is 12-gauge wire large enough to supply this current? (b) What is the resistance of the dryer鈥檚 heating element at its operating temperature? (c) At 11 cents per kWh, how much does it cost per hour to operate the dryer?

You connect a battery, resistor, and capacitor as in Fig. 26.20a, where R = 12.0 鈩 and C = 5.00 x 10-6 F. The switch S is closed at t = 0. When the current in the circuit has a magnitude of 3.00 A, the charge on the capacitor is 40.0 x 10-6 C. (a) What is the emf of the battery? (b) At what time t after the switch is closed is the charge on the capacitor equal to 40.0 x 10-6 C? (c) When the current has magnitude 3.00 A, at what rate is energy being (i) stored in the capacitor, (ii) supplied by the battery

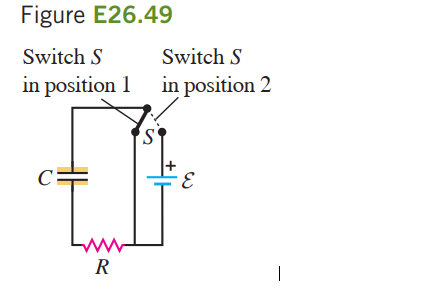

In the circuit shown in Fig. E26.49, C = 5.90 mF, 詯 = 28.0 V, and the emf has negligible resistance. Initially, the capacitor is uncharged and the switch S is in position 1. The switch is then moved to position 2 so that the capacitor begins to charge. (a) What will be the charge on the capacitor a long time after S is moved to position 2? (b) After S has been in position 2 for 3.00 ms, the charge on the capacitor is measured to be 110 mC What is the value of the resistance R? (c) How long after S is moved to position 2 will the charge on the capacitor be equal to 99.0% of the final value found in part (a)?
