Chapter 4: Q60P (page 717)

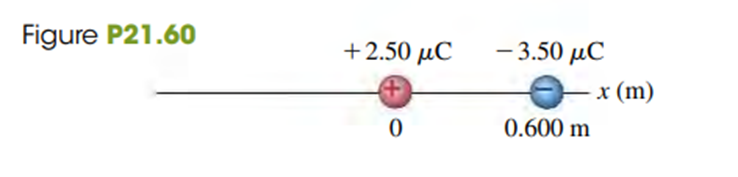

Two charges are placed on the x-axis: one, of 2.50 渭C, at the origin and the other, of -3.50 渭C, at x = 0.600 m (Fig. P21.60). Find the position on the x-axis where the net force on a small charge +q would be zero.

Short Answer

Expert verified

The net force on charge +q would be zero when +-q is at distance 3.27 m at negative x-axis.

Step by step solution

01

Position of Charges

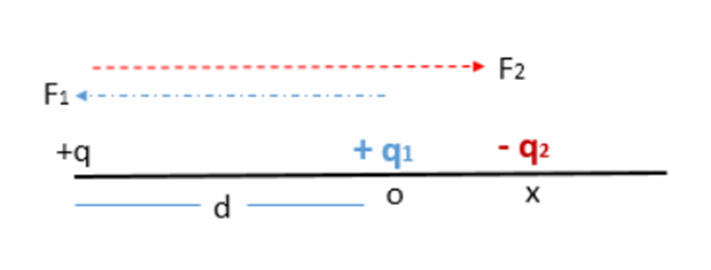

The unknown charge is positive like charge q1,therefore the position of the charge +q must be left to charge q1, as shown below.

02

Net Force

The net force that equals zero could be given by

Fnet=F1+F20=14蟺蔚oq1|+q|d2+14蟺蔚oq2|+q|(d+0.600m)2q1d2=q2(d+0.600m)2dd+0.600m=q1q2

03

Substitution

Put values to find d:

dd+0.600m=|2.50渭C|鈭�鈭�3.50渭Cd=3.27m

Therefore, the net force on charge +q would be zero when +-q is at distance 3.27 m at negative x-axis

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A proton is placed in a uniform electric field and thenreleased. Then an electron is placed at this same point and released.Do these two particles experience the same force? The sameacceleration? Do they move in the same direction when released?

A silver wire 2.6 mm in diameter transfers a charge of 420 C in 80

min. Silver containsfree electrons per cubic meter. (a) What is the

current in the wire? (b) What is the magnitude of thedrift velocity of the

electrons in the wire?

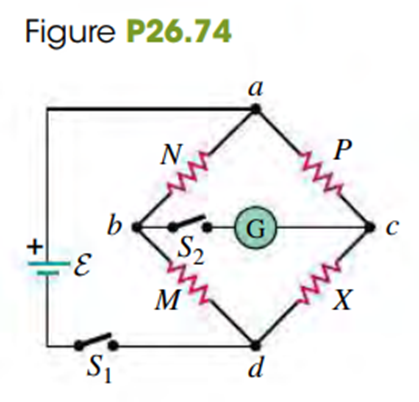

Question: The circuit shown in Fig. P26.74, called a Wheatstone Bridge, is used to determine the value of an unknown resistor X by comparison with three resistors M, N, and P whose resistances can be varied. For each setting, the resistance of each resistor is precisely known. With switches S1 and S2 closed, these resistors are varied until the current in the galvanometer G is zero; the bridge is then said to be balanced. (a) Show that under this condition the unknown resistance is given by X = MP/N. (This method permits very high precision in comparing resistors.) (b) If galvanometer G shows zero deflection when M = 850.0 鈩�, N = 15.00 鈩�, and P = 33.48 鈩�, what is the unknown resistance X?

Question: A +2.00nC point charge is at the origin, and a second -5.00nC point charge is on the x-axis at x = 0.800 m. (a) Find the electric field (magnitude and direction) at each of the following points on the x-axis: (i) x = 0.200 m; (ii) x = 1.20 m; (iii) x = -0.200 m. (b) Find the net electric force that the two charges would exert on an electron placed at each point in part (a).

We have seen that a coulomb is an enormous amount of charge; it is virtually impossible to place a charge of 1 C on an object. Yet, a current of 10A,10C/sis quite reasonable. Explain this apparent discrepancy.
