Point charge q1 = -5.00 nC is at the origin and point charge q2 = +3.00 nC is on the x-axis at x = 3.00 cm. Point P is on the y-axis at y = 4.00 cm. (a) Calculate the electric fieldsandat point P due to the charges q1 and q2. Express your results in terms of unit vectors (see Example 21.6). (b) Use the results of part (a) to obtain the resultant field at P, expressed in unit vector form.

Short Answer

Expert verified

Answer:

(a) The electric field E1 and E2 at the point P due to the point q1 and q2 is ,

E1=-2.8×104j^N/C,-6.48×103i^+8.64×103j^N/m

(b) The resultant field at P isrole="math" localid="1658483325561" -6.48×103i^+1.94×104j^N/m

Step by step solution

01

Electric field vector

Given,

q1=-5.0nCq2=3.0nCx=3.0×10-2my=4.0×10-2m

The electric field due to the charge is,

E1=kq1r12

Now, the electric field due to the charge at origin is given by:

E1=kq1r12=9×109×5×10-94×10-22=2.8×104 N/C

Now the direction of the field is in

Therefore,E1=-2.8×104j^N/C

Now, the electric field due to the second charge is given by:

E2=kq2r22=kq2x2+y22=9×109×3×10-90.32+0.4222=1.08×104 N/C

02

Calculating the field vectors

Therefore, the angle and the electric field and the horizontal is:

θ1=arctan43=53.130

Now, the electric field vector is given by:

E2=E1-cosθi+sinθ=1.08×104-cos53.13i^+sin53.13j^=-6.48×103i^+8.64×103j^N/m

Therefore, the resultant field at P is-6.48×103i^+8.64×103j^N/m

Now the net electric field is:

E=E1+E2=-2.8×104j^-6.48×103i^+8.64×103j^=-6.48×103i^-1.94×104j^N/m

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Question: A 540-Welectric heater is designed to operate from120-Vlines. (a) What is its operating resistance?(b) What current does it draw?(c) If the line voltage drops to 110 V what power does the heater take? (Assume that the resistance is constant. Actually, it will change because of the change in temperature.)(d) The heater coils are metallic, so that the resistance of the heater decreases with decreasing temperature. If the change of resistance with temperature is taken into account, will the electrical power consumed by the heater be larger or smaller than what you calculated in part (c)? Explain.

The circuit shown in Fig. E25.33 contains two batteries, each with an emf and an internal resistance, and two resistors. Find (a) the current in the circuit (magnitude and direction) and (b) the terminal voltage Vabof the 16.0-V battery.

Fig. E25.33

Two copper wires with different diameter are joined end to end. If a current flow in the wire combination, what happens to electrons when they move from the large diameter wire into the smaller diameter wire? Does their drift speed increase, decrease, or stay the same? If the drift speed change, what is the role the force that causes the change? Explain your reasoning.

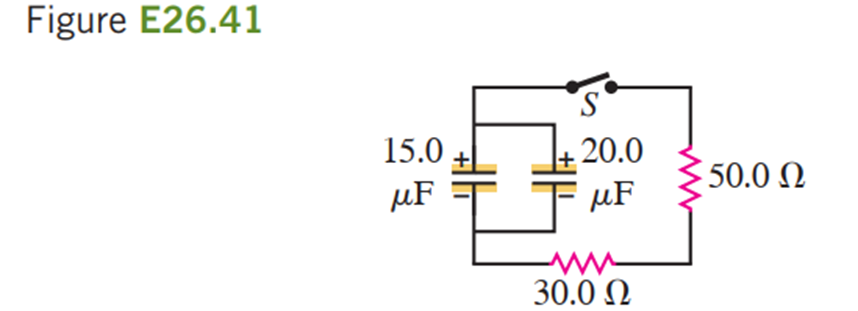

In the circuit shown in Fig. E26.41, both capacitors are initially charged to 45.0 V. (a) How long after closing the switch S will the potential across each capacitor be reduced to 10.0 V, and (b) what will be the current at that time?
