It measures of force that can cause an object to rotate about an axis.

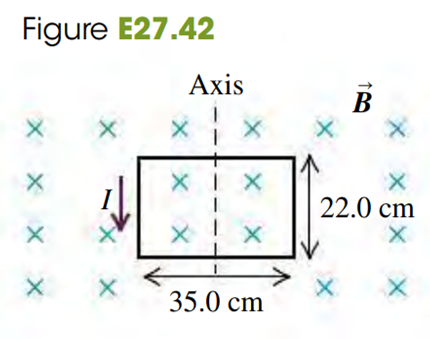

a=35.0cm

b=22.0cm

I=1.95A

B=1.50T

(a)for the net force and torque that the magnetic field exerts on the coil.

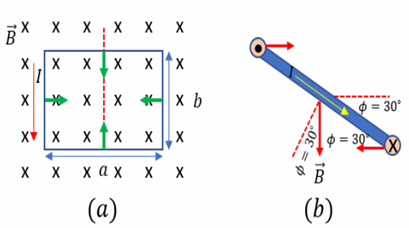

Force acting both right and left side has same magnitude but in opposite direction. also, force acting on upper and lower side have same magnitude in opposite direction. Force produces no torque and net force acting is also zero. Force on each side points at same direction of position vector.$\mathrm{蠒}=0掳,\sin \left(\mathrm{蠒}\right)=0$ thus,

F=0 and$\mathrm{蟿}=0$

Thus, the net force and torque that the magnetic field exerts on the coil F=0

(b)for the net force and torque that the magnetic field now exerts on the coil.

The coil is rotated at $\mathrm{蠒}=30.0掳$about axis. The force in upper and lower side has same magnitude in opposite direction which cancel each other.so net force is zero but as torque is there because angle between force on each side position vector is ,

$\mathrm{蠒}=30.0掳$

$\begin{array}{r}\mathrm{T}=\mathrm{IBAsin}鈦�\left(\mathrm{蠒}\right)\\ \mathrm{A}=\mathrm{ab},\\ \mathrm{T}=(1.95\mathrm{A})(1.50\mathrm{T})(0.220\mathrm{m})(0.350\mathrm{m})\sin 鈦�(30.0)\\ \mathrm{T}=0.113\mathrm{N}脳\mathrm{m}\end{array}$

Thus, the net force and torque that the magnetic field now exerts on the coil F=0 .

$\mathrm{蟿}=0.113\mathrm{N}.\mathrm{m}$
